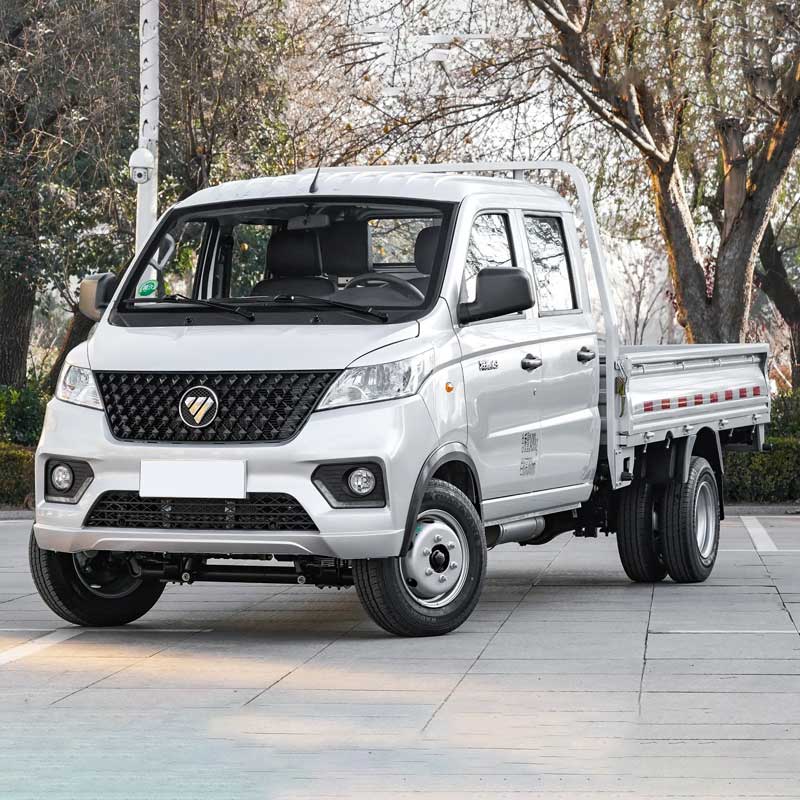

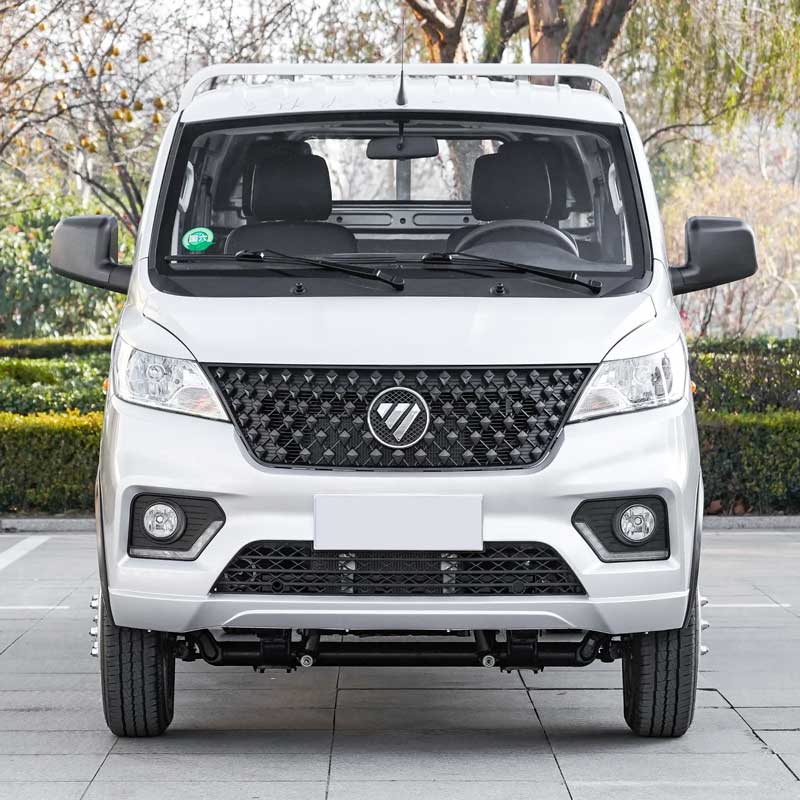

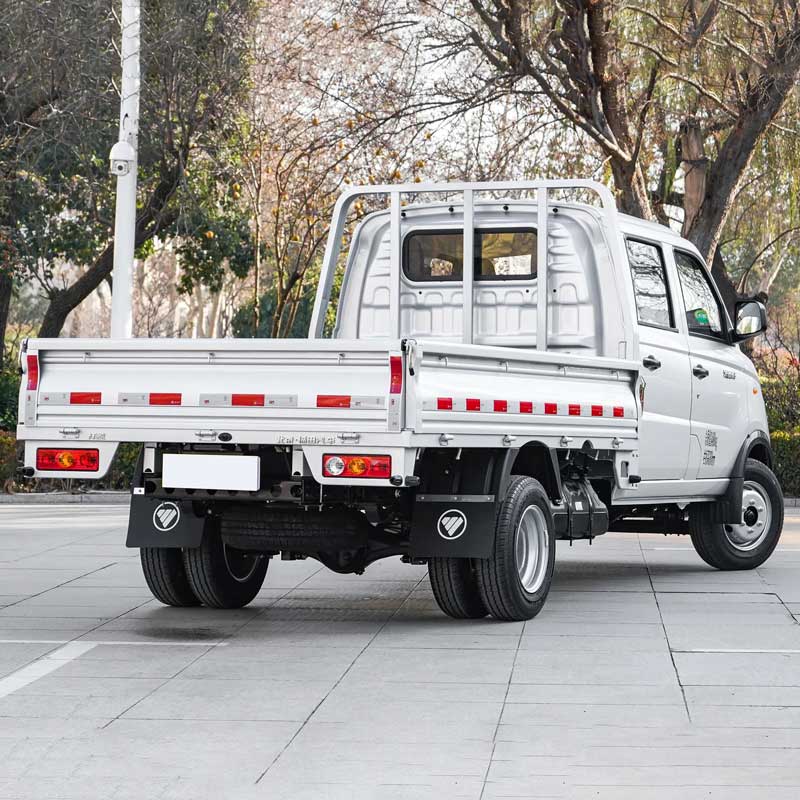

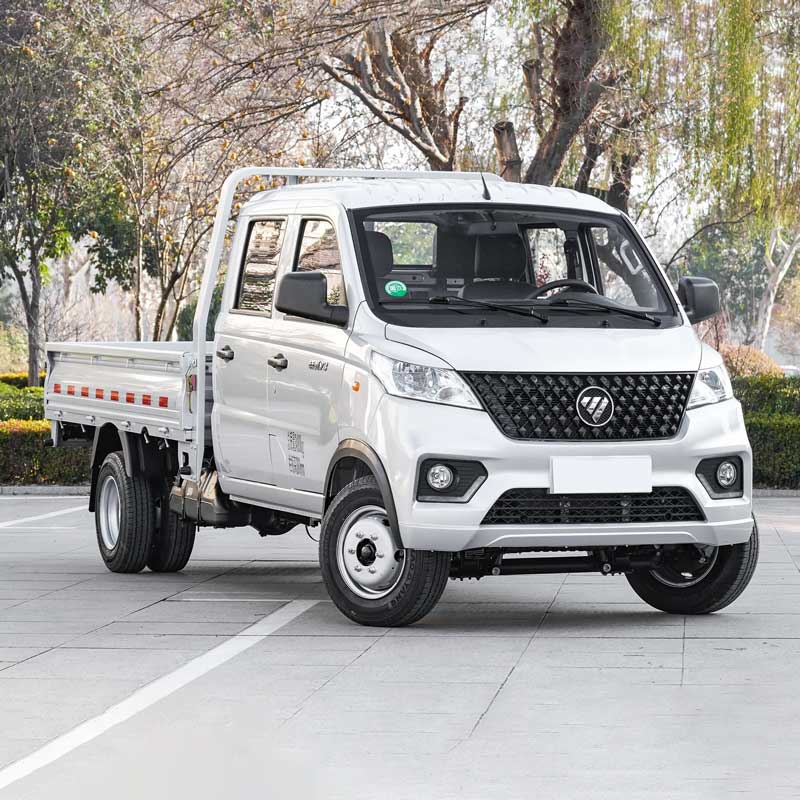

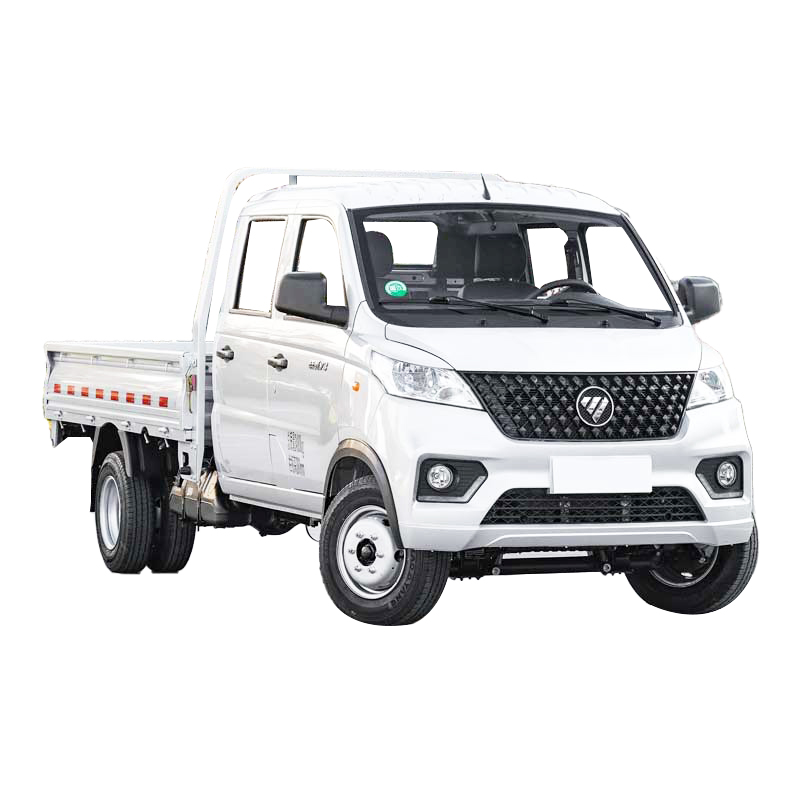

Futian Xiangling V3 All-in-One Micro Truck - Single Row/Double Row Multiple Sizes - Load Capacity 1.5 Tons
Body Types: Flatbed, Van, Caged (with canopy), Refrigerated Truck, etc.
Cab Types: Single Cab (2-seater), Extended Cab (2+1 seater), Double Cab (5-seater).
1. Key Dimensions & Cargo Box
Overall Dimensions (L×W×H mm): Approximately 5450-5995 × 1850-2150 × 2420-2650 (varies by cab and body).
Wheelbase (mm): Common options are 2850 and 3200.
Cargo Bed Dimensions (Flatbed, approx.):
Single Cab: Length up to ~3700-4060 mm, Width ~1750-1850 mm.
Double Cab: Length ~2700-3050 mm.
Van Body: Cargo volume up to approximately 11-13 cubic meters.
2. Powertrain
Engine (Primary):
Max Power: Approx. 90 kW (122 HP)
Max Torque: Approx. 158 N·m

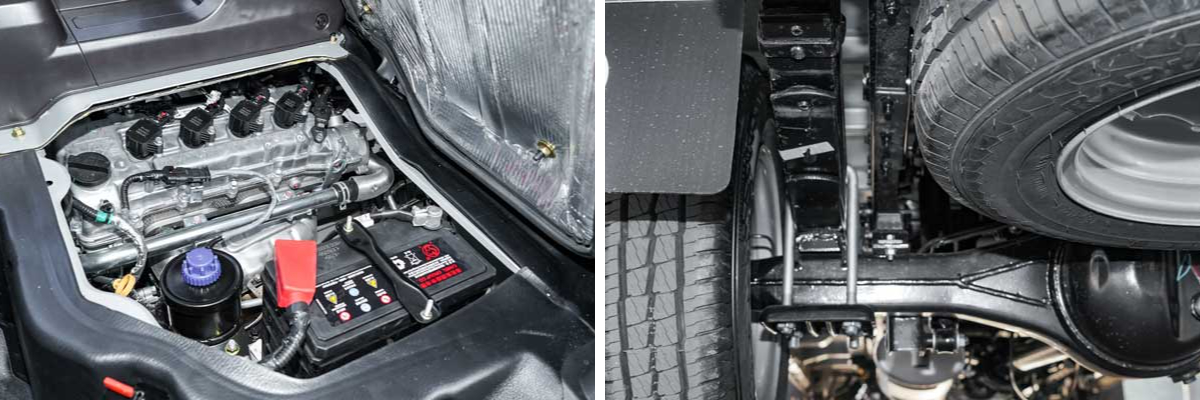

Gasoline: Powered by the Dong'an DAM16KL 1.6L gasoline engine.
Transmission: 5-speed manual transmission (standard).
Fuel Type: Gasoline (standard). Diesel engines (e.g., ~2.0L Quanchai) may be available in some markets.
Emission Standard: Complies with China VI (GB6-b) emission standards.
3. Chassis & Payload
Frame: High-strength steel, reinforced ladder frame for durability.
Rear Axle: Integral stamped/welded axle. Common Final Drive Ratios are 4.875 or 5.375 for balanced load capacity and gradeability.

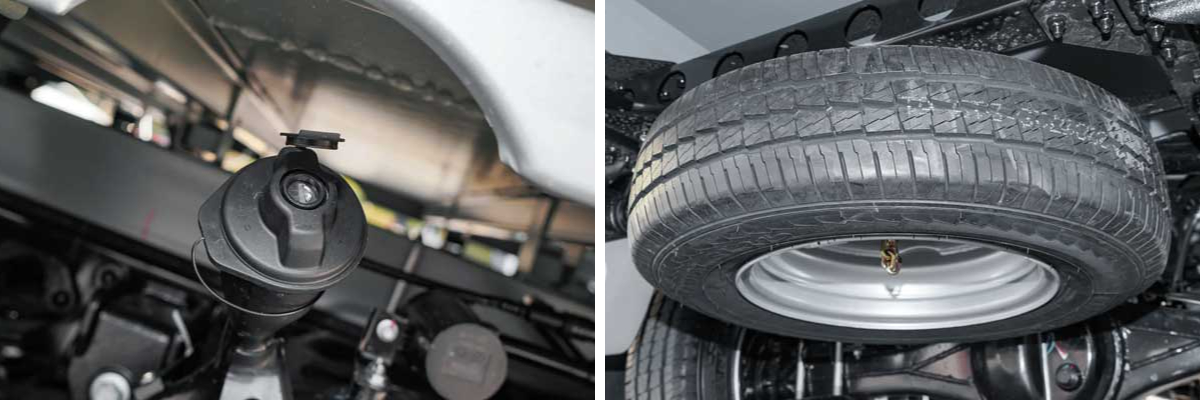

Tires: Common sizes: 185R14LT or 195/70R15 radial truck tires.
Payload Capacity: Typically between 1.0 - 1.5 metric tons (subject to specific model certification).
Gross Vehicle Weight (GVW): Around 3.5 tons (e.g., 3495kg).
4. Cab & Interior Features (Utilitarian Focus)
Interior: Car-like design, fabric seats, manual air conditioning.
Instrumentation: Standard analog/digital combination cluster.
Infotainment: AM/FM radio with USB port. Color touchscreen may be optional on higher trims.
Safety Features: Standard ABS + EBD, front disc/rear drum brakes, seatbelt reminder, speed limiter (as per regulations). Cab meets safety strength standards.
5. Key Selling Points & Target Market
Advantages:
Strong Payload: Robust chassis and frame for stable heavy-load transport.
Cost-Effective: Low purchase price, fuel consumption, and maintenance costs.
Maneuverable: Compact size for easy navigation in narrow city streets and rural roads.
Adequate Power: 1.6L engine is sufficient for daily logistics tasks.
Primary Use Cases: Urban/rural distribution, supermarket deliveries, small business transport, building materials, and courier logistics.
