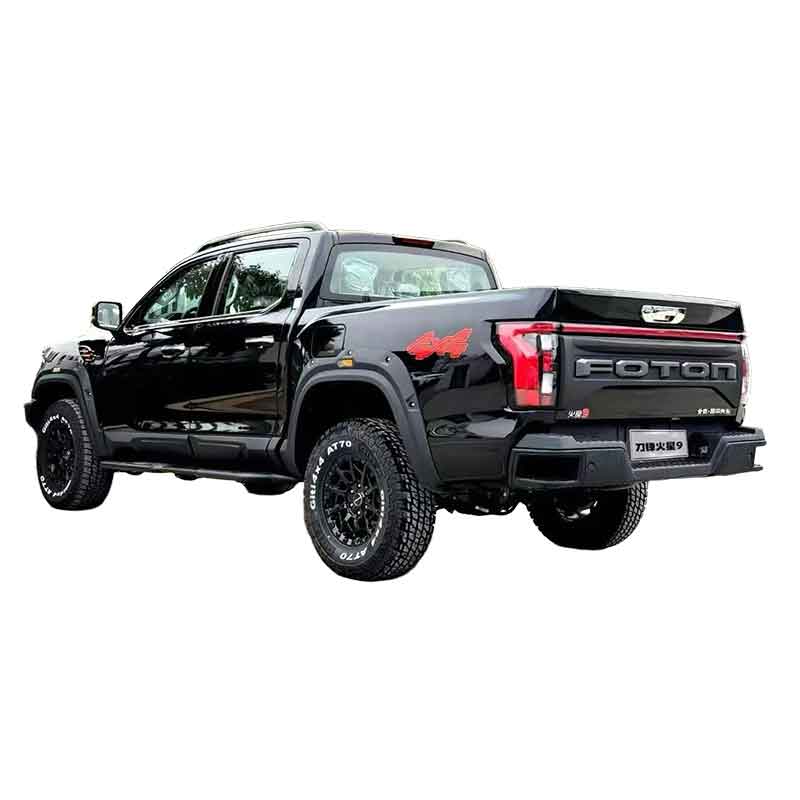

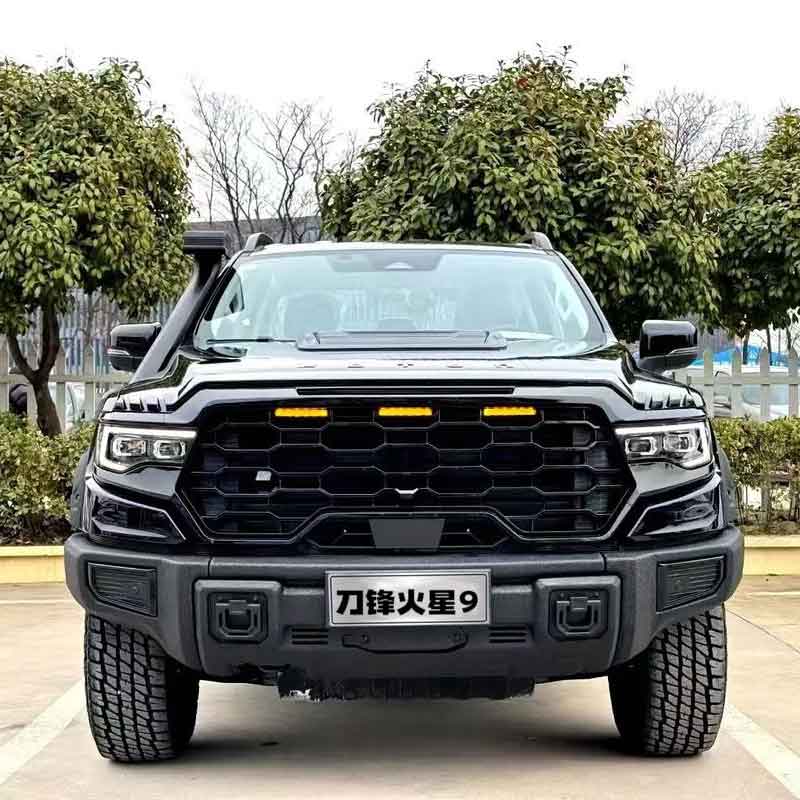

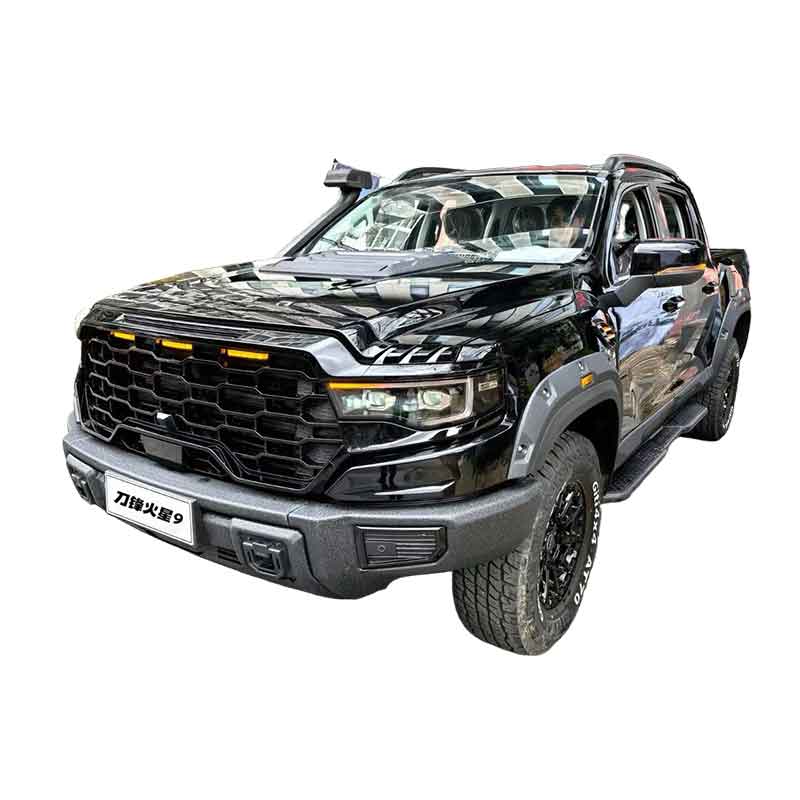

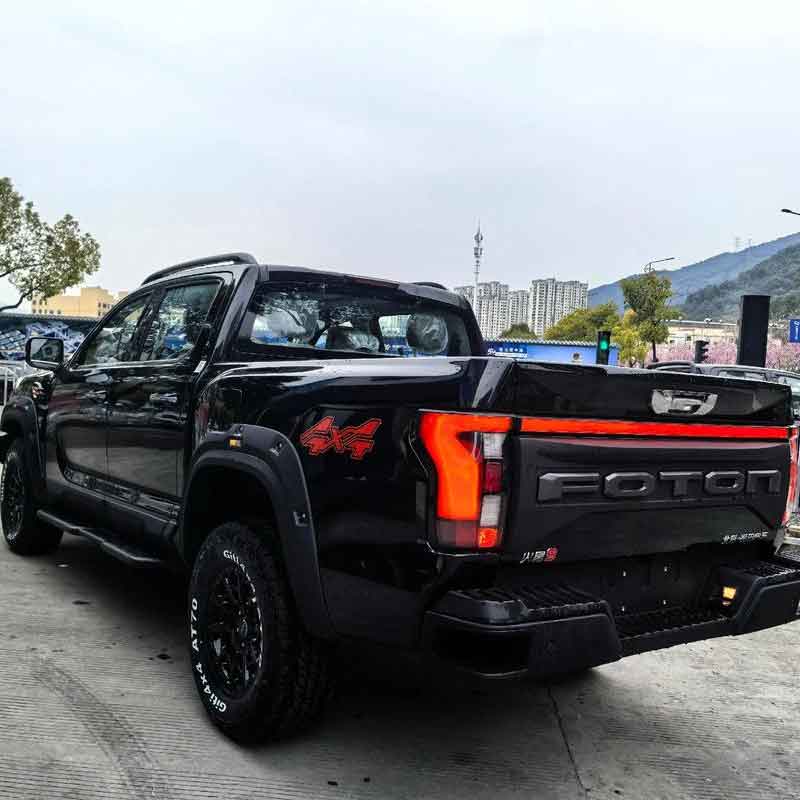

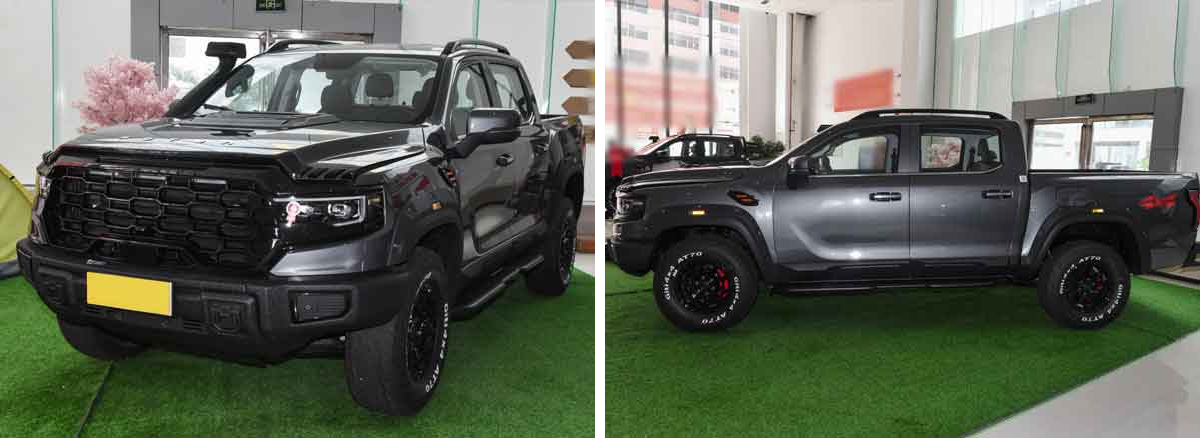

Foton 2025 Mars9 2.0T diesel automatic transmission
Core advantages:
Super powerful engine, ultimate efficiency: 4F20TC17 engine, generating astonishing torque, enabling effortless climbing at low speeds and smooth starting with heavy loads. Additionally, it adopts the latest fuel-saving technology, reducing fuel consumption by 8% compared to the previous generation, achieving a perfect balance between power and economy.
All-terrain conquest, fearless advance: The intelligent electronic four-wheel drive system offers multiple driving modes (such as sandy, muddy, snowy, and rocky), combined with a high ground clearance and professional off-road tires, making any complex terrain feel like walking on flat ground.

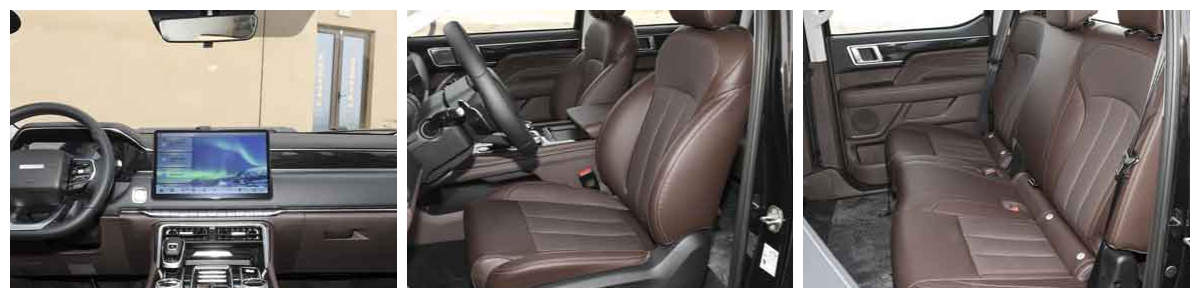

Luxurious and comfortable, quiet cabin: Equalling the NVH (noise, vibration, and harshness) engineering of luxury SUVs, it effectively blocks out diesel engine noise and road noise. Ergonomic seats, an ultra-wide panoramic window, and multi-zone automatic air conditioning make long journeys a delightful experience.
Intelligent technology, safety at your side: Equipped with L2+ level intelligent driving assistance system, including adaptive cruise control, lane keeping, automatic emergency braking, etc. The intelligent connected screen supports voice control and remote start, presenting a strong sense of technology.
Dual identities, value multiplied: It is both a productivity tool, with powerful loading and dragging capabilities to meet commercial needs; and a life companion, featuring luxurious configurations and comfortable experiences, perfectly suited for family travel and outdoor adventures.
The Foton Mars9 2025 is not just a pickup truck; it is your trusted companion for exploring the unknown, and a mobile fortress for traversing both cities and wilderness. With its more sleek design, more powerful core, and more exquisite craftsmanship, it offers you an unprecedented all-terrain driving experience. Equipped with the new-generation 4F20TC17 efficient diesel engine, it is ready to go, and together with you, it will embark on every legendary journey.
| Basic Information | |
| Manufacturer | Futian Automobile |
| Level | Full-size pickup truck |
| Energy type | 48V mild hybrid system |
| Listing time | 2025.02 |
| Engine | 2.0T 163 horsepower L4 48V mild hybrid system |
| Maximum engine power (kW) | 120(163Ps) |
| Maximum torque of the engine (N-m) | 450 |
| Transmission | 8-speed automatic |
| Length x Width x Height (mm) | 5677x2095x1970 |
| Body structure | 4 doors, 5 seats, 2 rows |
| Maximum speed (km/h) | 160 |
| NEDC comprehensive fuel consumption (L/100km) | 8.7 |
| Body of the vehicle | |
| Length (mm) | 5677 |
| Width (mm) | 2095 |
| Height (mm) | 1970 |
| Wheelbase (mm) | 3355 |
| Front wheel spacing (mm) | 1740 |
| Rear wheel spacing (mm) | 1740 |
| Minimum ground clearance (mm) | 250 |
| Body structure | Two rows |
| Number of doors (pieces) | 4 |
| Door opening method | Sliding door entrance |
| Number of seats (pieces) | 5 |
| Tare weight (kg) | 2435 |
| Maximum load mass (kg) | 395 |
| Pulling weight (kg) | 2840 |
| Tank volume (L) | 76 |
| Box length × width × height (mm) | 1577x1650x530 |
Product Characteristics:
Powertrain Characteristics:
4F20TC17 engine: Utilizes VGT variable area turbocharging technology, effectively reducing turbo lag and providing rapid power response. The peak torque range is wide, with the maximum torque output starting at 1500 rpm and continuing up to 3000 rpm, offering a continuous and powerful driving experience.
8AT transmission: The shifting logic is intelligent and smooth, while also considering fuel economy. It also offers manual and sport modes to meet different driving needs.
Chassis and off-road characteristics:
Exclusive Tuning: The suspension system has been specially strengthened and tuned, ensuring comfort while providing stronger lateral support.
Electronic Rear Axle Differential Lock: When a single rear wheel slips, it can quickly lock up, transferring power to the wheel with better grip, significantly enhancing the ability to escape from difficult situations.
Safety features:
360° panoramic camera + transparent chassis, eliminating blind spots in vision.
8 airbags (including side airbags for both front and rear seats), providing comprehensive safety protection. Bosch 9.3 generation ESP vehicle stability system, ensuring the stability of driving dynamics at all times
| Engine | |
| Engine model | 4F20TC17 |
| Displacement (mL) | 1968 |
| Displacement (L) | 2 |
| Intake form | Turbocharging |
| Engine layout configuration | Vertical placement |
| Cylinder arrangement form | L |
| Number of cylinders (units) | 4 |
| Number of valves per cylinder (count) | 4 |
| Compression ratio | 16.2 |
| Intake and exhaust mechanism | DOHC |
| Maximum horsepower (Ps) | 163 |
| Maximum power (kW) | 120 |
| Maximum net power (kW) | - |
| Maximum power speed (rpm) | 3600 |
| Maximum Torque (N.m) | 450 |
| Maximum torque speed (rpm) | 1500 - 240 |
| Engine-specific technology | - |
| Fuel type | 48V mild hybrid system |
| Fuel grade | #0 |
| Fuel supply method | In-cylinder direct injection |
| Cylinder head material | Aluminum alloy |
| Cylinder block material | Cast iron |
| Environmental protection standards | Euro VI |
| Transmission | |
| Transmission description | 8-speed automatic |
| Number of gears | 8 |
| Transmission type | Automatic transmission (AT) |
| Chassis/Steering | |
| Drive mode | Front-wheel drive with four-wheel drive capability |
| Four-wheel drive type | Four-wheel drive by time-sharing |
| Front suspension type | Double wishbone independent suspension |
| Rear suspension type | Overall bridge-type non-independent suspension |
| Turning type | Electric assistance |
| Vehicle body structure | Non-bearing type |
| Wheels / Braking | |
| Front brake type | Ventilated disc type |
| Rear brake type | Solid disc type return |
| Parking brake type | Electronic parking brake release |
| Front tire specification size | 285/70 R17 |
| Rear tire specification size | 285/70 R17 |
| Tire spare specification | Non-full size |
| Active Safety ● Standard ● Optional - None | |
| ABS anti-lock system | Standard configuration |
| Brake force distribution (EBD/CBC, etc.) | Standard configuration |
| Brake assist (EBA/BA, etc.) | Standard configuration |
| Traction control (TCS/ASR, etc.) | Standard configuration |
| Vehicle Stability System (ESP/DSC, etc.) | Standard configuration |
| Active Safety Warning System | Lane Departure Warning |
| Front Collision Warning | |
| Active Braking | Optional accessories |
| Lane Keeping Assist System | Optional accessories |
| Keep in the center of the lane | Optional accessories |
Application scenario:
Business Elite Vehicle: With its imposing exterior and luxurious interior, it is your mobile business card. When receiving clients, it showcases your strength and taste.
Outdoor adventure tool: Pulling a caravan, carrying an all-terrain vehicle, and packing camping gear, it is the perfect base for exploring nature.
All-in-One Family Companion: A spacious five-seat design, comprehensive active and passive safety features, capable of accommodating the joyous weekends and long trips of the entire family.
Ideal choice for specialized industries: For industries such as engineering supervision, geological exploration, and power maintenance that require access to complex terrains, it is a reliable professional equipment.
Daily Maintenance:
Oil and Filter: Use C3 grade fully synthetic diesel engine oil that meets the standard. It is recommended to replace the oil and filter every 10,000 kilometers or every 6 months, and simultaneously replace the oil filter, diesel filter and air filter.
Fuel system: It is essential to add high-quality diesel of the Grade 6B standard at a certified gas station to ensure the long-term operation of the high-pressure common rail system and the after-treatment system.
DPF Maintenance: The vehicle is equipped with a diesel particulate filter (DPF). Please avoid long periods of low-speed driving. When the dashboard indicates "DPF needs regeneration", please follow the manual instructions to perform a high-speed active regeneration, or visit a service station for handling.
Four-wheel drive system: Regularly check the transmission fluid and the gear oil of the front and rear axles. When driving on a paved surface, please use the two-wheel drive mode to save fuel and reduce component wear.
Chassis and Body: After each off-road or long-distance driving, it is recommended to check if the chassis has any dents or damages, and clean the chassis to prevent the residue of mud, sand, and corrosive substances.
Long-term parking: If you need to park the vehicle for an extended period, it is recommended to disconnect the negative terminal of the battery and park the vehicle in a dry and well-ventilated area.
