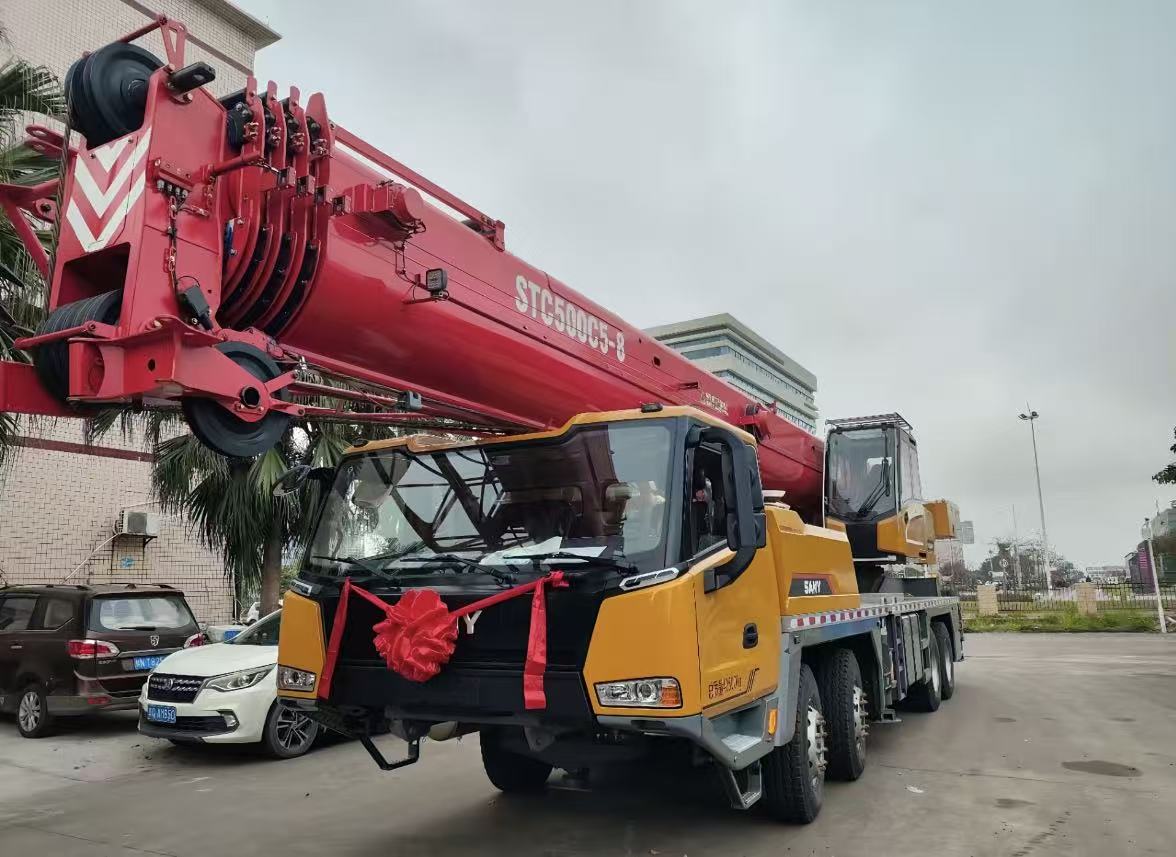

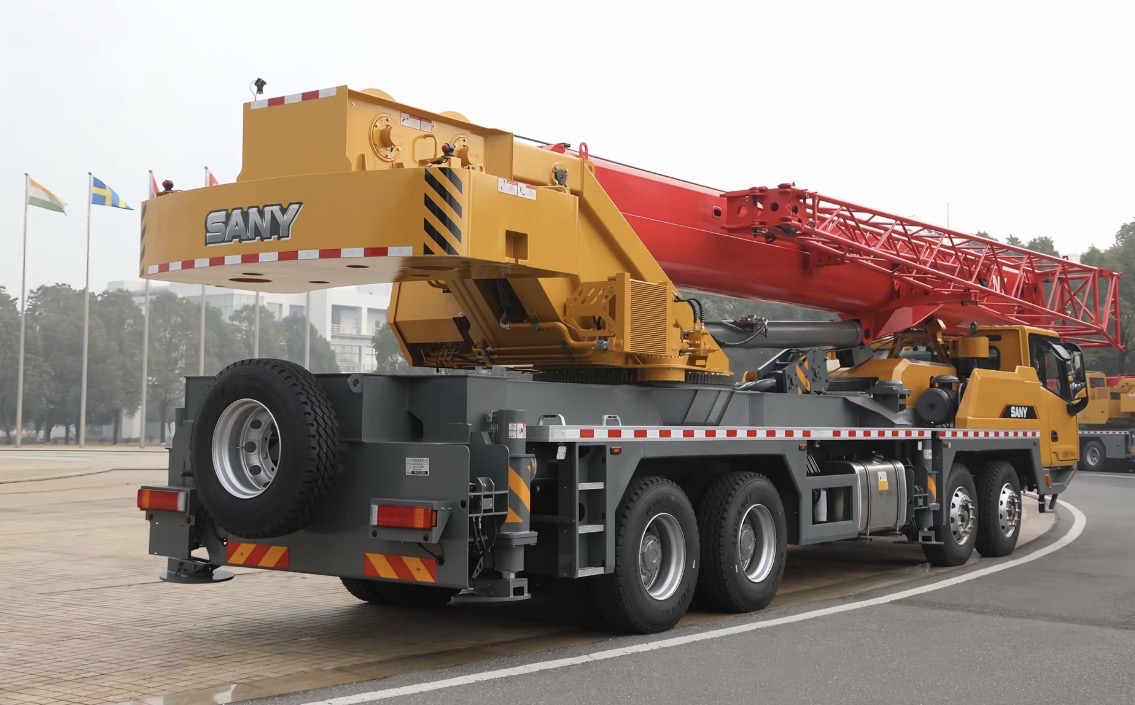

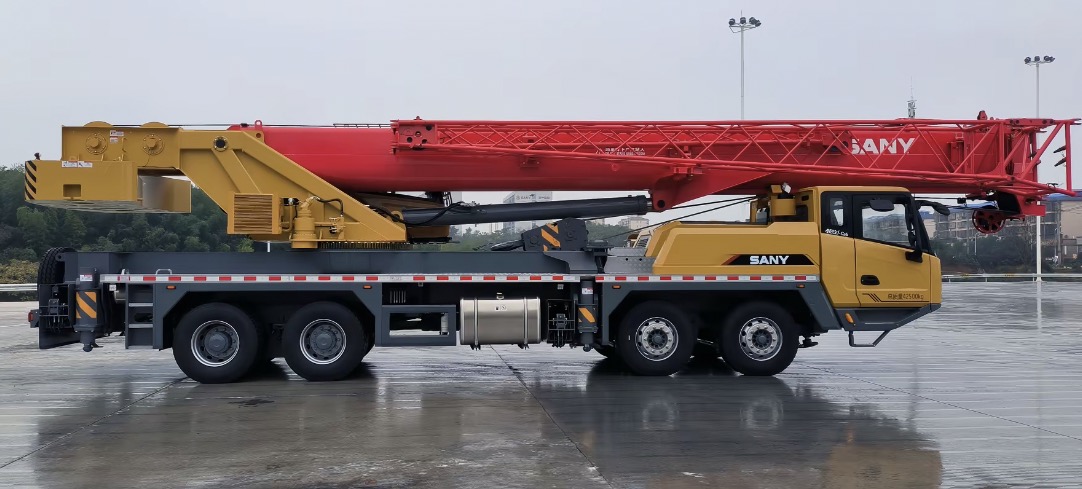

SANY STC500C5 Truck Crane

  44m full-extension large U-shape section boom, 16m jib, max. lifting height 60.5m, max. lifting moment of basic boom 1600kN·m and max. lifting capacity of full extension boom 8.4t, high reliability.Safety and reliability: Using 1500 slewing bearing, the carrying capacity is increased by 30%, providing safer and more reliable operation. Efficient operation: Adopting quantitative piston motor, max. winch speed 140m/min. Excellent performance: 6t fixed counterweight+2.5t movable counterweight.

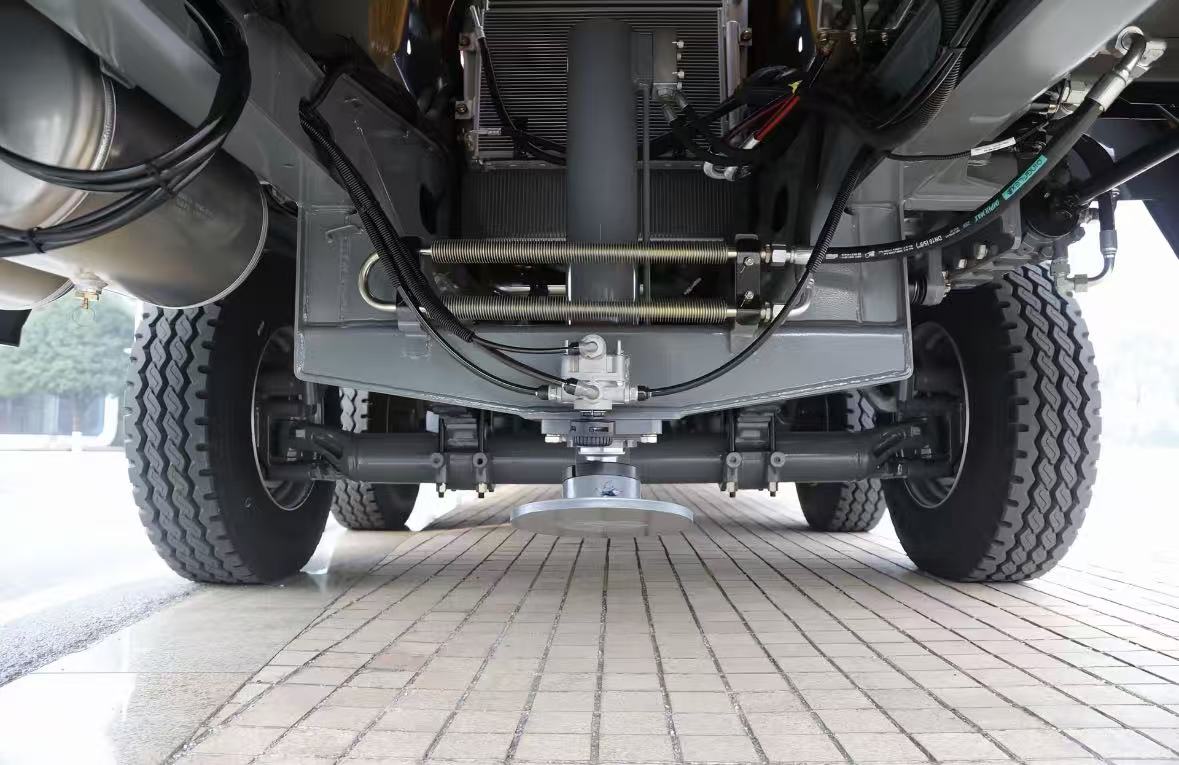

  DF Cummins ISLe340 30 engine, FAST 9-speed manual transmission with synchronizer, two stage reduction axle, rubber suspension. Max. travel speed 90km/h, max. gradeability 45%, higher than competitor products. Innovative rectangular structure frame, through 20,000 times of high strength test, bending and torsion resistance is 5% better than competing products, double-stage reinforced low outrigger layout, span 6.05×7.4m, standard jack cylinder, more stable lifting. G type chassis, min. ground clearance 260mm, strong off-road trafficability.

  Dual piston main pump, piston winch motor, highly efficient at high speed, stable at low speed. The new flow distribution system can switch between split and confluence smoothly, improve the maneuverability of combined operation, meet the needs of precision lifting, and improve the stability by 50%. Integrated slewing buffer control: Sequential braking and free swing. Smooth slewing start & control with excellent inching performance.

CAN BUS system: Controllers, displays, meters, I/O modules, sensors, etc. are integrated in CAN Bus networking, fast-responsive. Fault diagnosis system: Operating device with smart controller, body with BCM module, accurately locating the fault point, making the maintenance convenient. Smart power distribution and control with battery pack. 7" HD color display and silica gel panel, to further improve manmachine interaction. SANY load moment indicator system provides protection for overloading, over release, over winding
