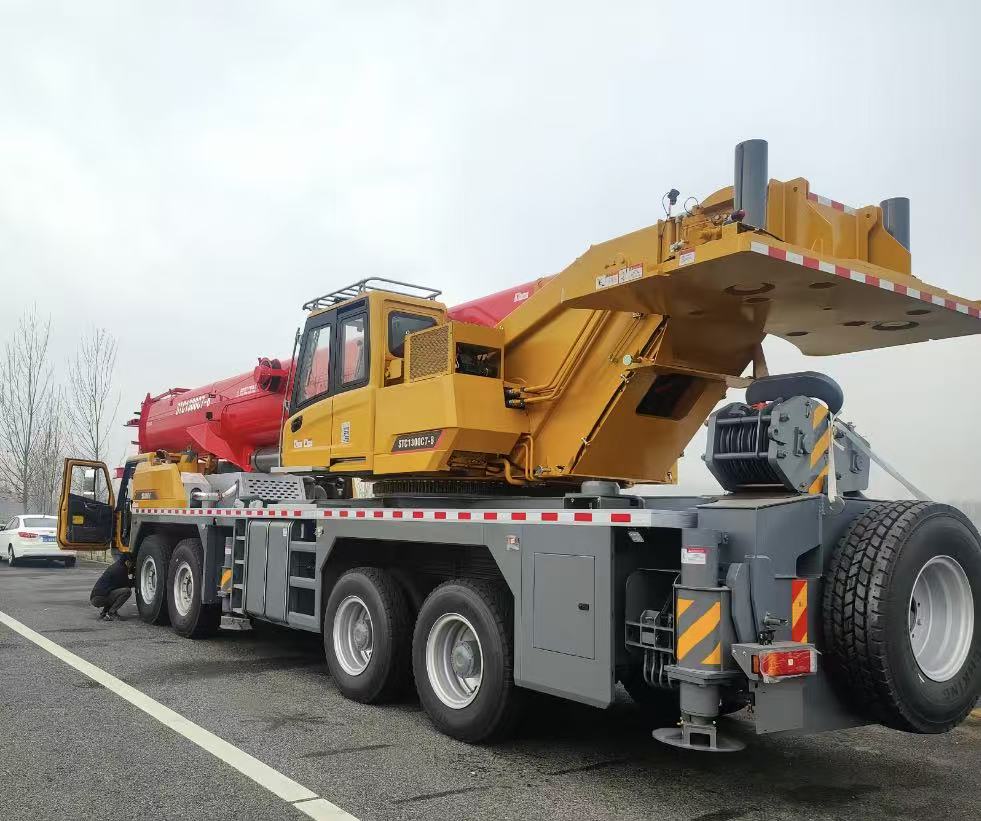

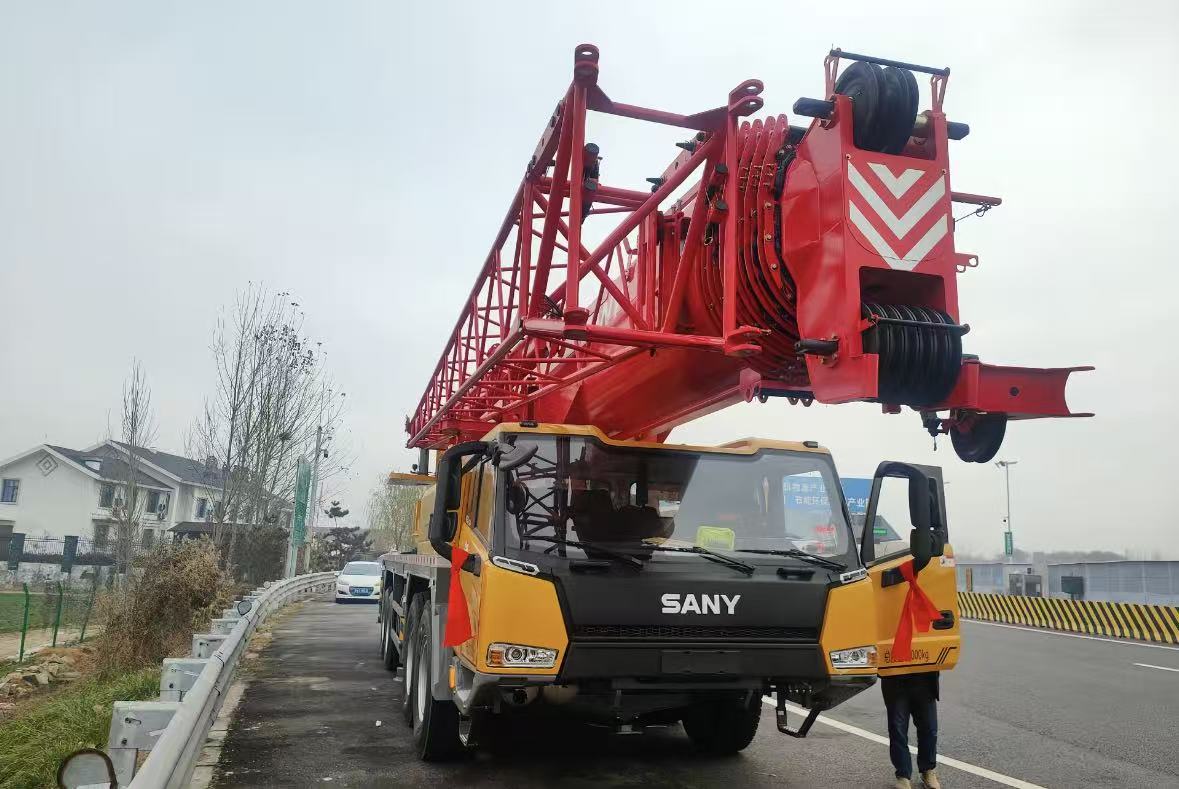

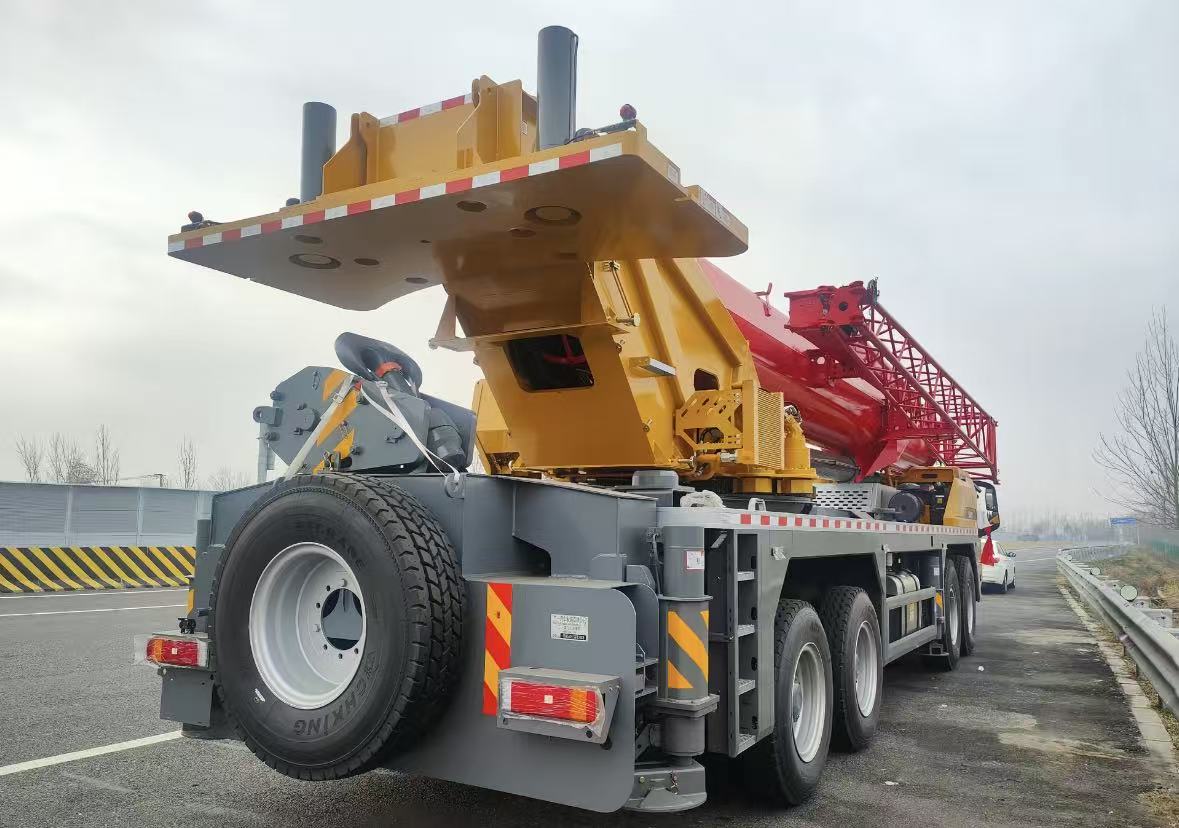

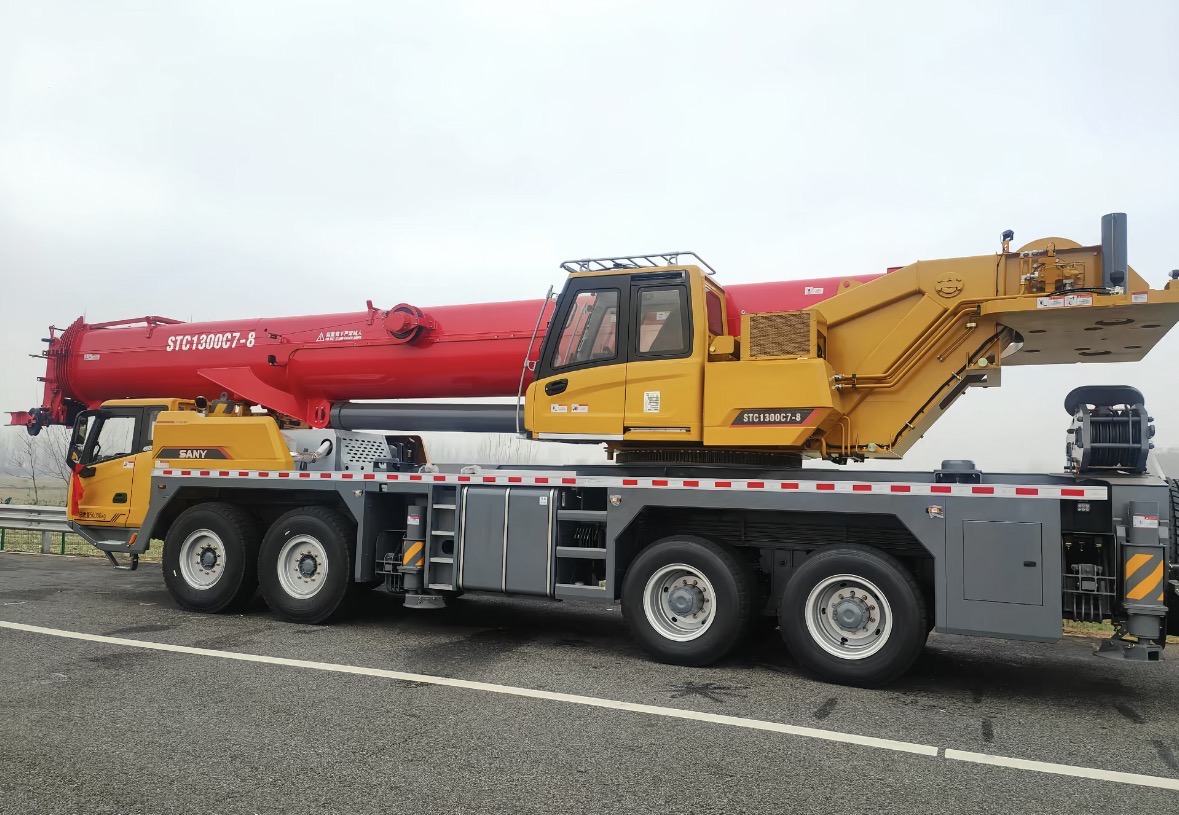

SANY STC1300C7 Truck Crane

7-section oval shape 74.8m boom, max. lifting moment 496.8t.m, standard 18m jib (8m extensions optional), ensuring unmatched lifting range, height and capacity. Double engine drive: DF Cummins QSB6.7-C260 powering crane operation, fuel consumption lowered by 30% than hydraulic single engine system. Chassis Benz OM460LA.E3A engine + ZF AMT with hydraulic retarder + Kessler axles with disc brakes, max. speed 80km/h, max. gradient 46%. 5-axle all-terrain chassis, H-type outriggers, hydro-pneumatic suspension, all-wheel steering, 6 steering modes. The min. steering radius is as small as 8.5m, delivering 15% higher flexibility among same class in industry. 42t full counterweight, traveling with 20.5t counterweight allowed with well distributed axle load. Crane harness wiring of higher reliability.


Multi-function driver's seat with air suspension ， Double passenger seats foldable to make a berth ， 10.1-inch touch screen integrated with reversing image and multi-media ， Large-field-of-vision rearview mirror with electric heating ， Adjustable high-brightness LED headlamps/fog lamps, providing clear vision at night ， Fully-automatic HVAC

Three seats with a folding berth. It's soundproofing performance meets the standard of heavy duty trucks. Air suspension seat features shock absorption, back adjustment, lumbar support and other ergonomic designs. Virtual LCD instrument and 12.1"console screen integrate auto control of air conditioning. Indoor temperature can be adjusted precisely and smoothly. LED headlights, electrically heated rear-view mirrors, multifunction steering wheel. The multi-media equipment can be controlled by the buttons integrated in the steering wheel.

All axles equipped with hydro-pneumatic suspension with hydraulic lockout, height adjustable up by 190mm and down by 100mm. Variable modes incl. rigid lockout, auto leveling, whole machine rise & lower, single point rise & lower. Ride comfort and vehicle lateral stability are ensured regardless of any rough terrains.
