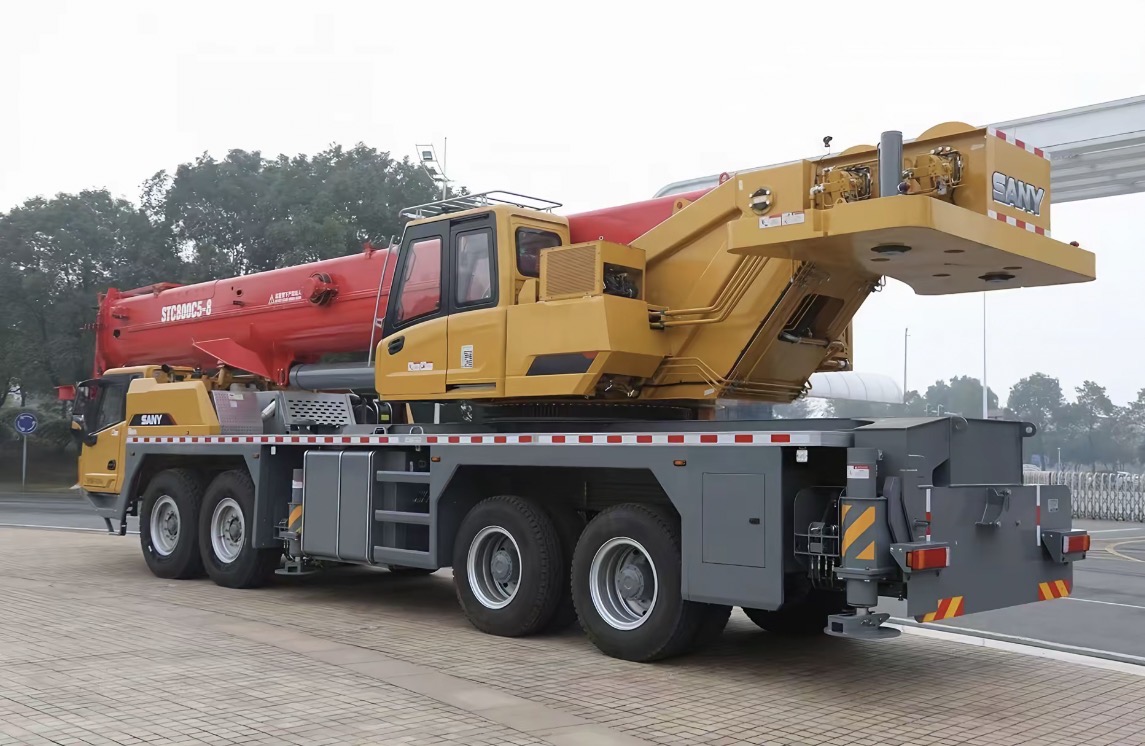

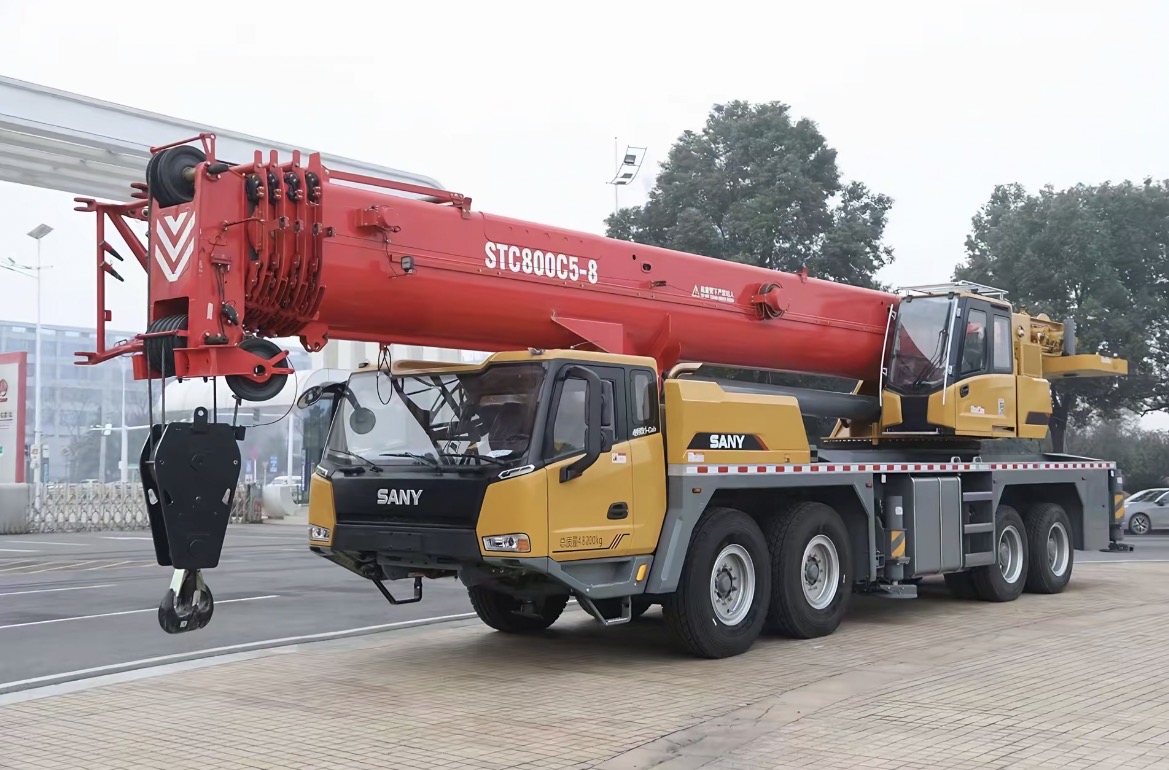

SANY STC800C5 Truck Crane

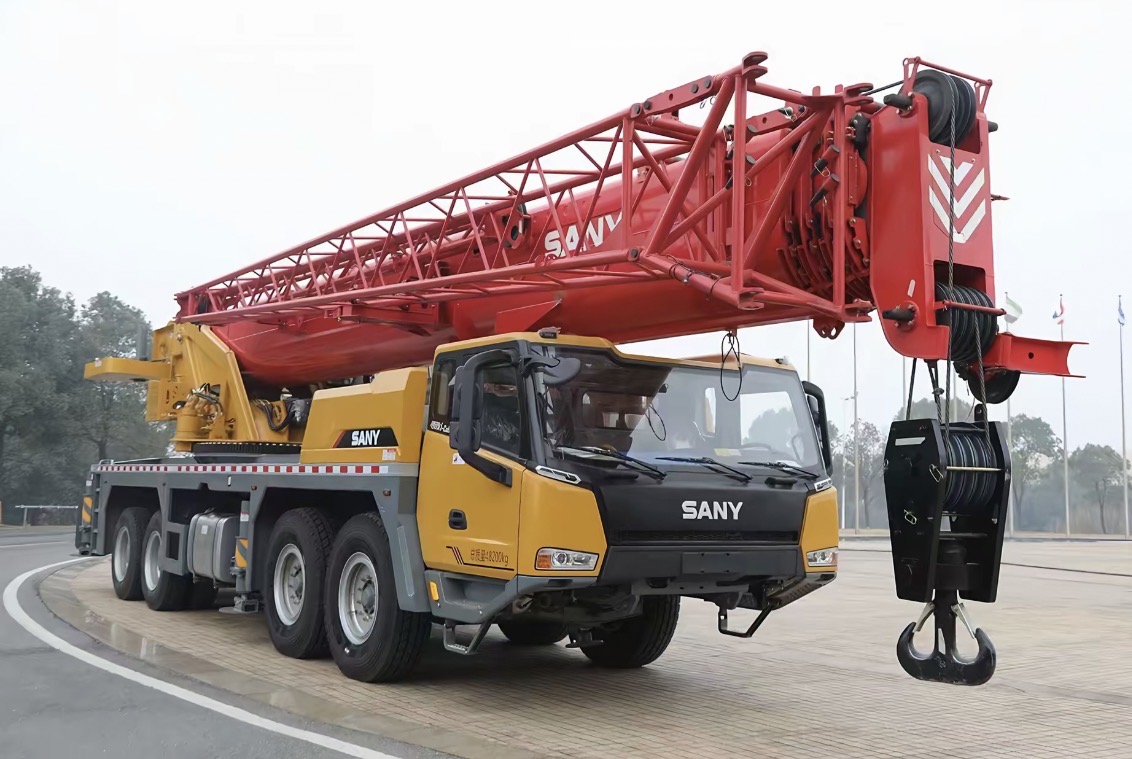

Five section large cross section boom, full extension length 49.5m at 42m radius, 17.5m bi-fold jib available. The lifting performance leads in industry.Outriggers extend to 7.7m in full span, making lifting operation more stable. Newly developed half extension mechanism makes the crane more adaptable to work at constricted area.

Fixed CW 3t, movable CW 7t, featuring three combinations. Additional 5t or 5t*2 CW for option. The crane can travel with 15t CW on board at low speed (<20km/h) in short distance. CW assembly efficiency significantly increased via auto-lock after CW lifted to position.

0~20° tiltable cab, relieving fatigue in long time operation. Side step available, making getting in and out of the cab easier and safer. 45° tilted membrane buttons, easy to view and touch. Six-outlet air conditioning, more comfortable.

All new double pump intelligent flow distribution system shared by all T-series models lifts combined motion stability by over 50%. High precision lifting work of mm-level with min. winch single rope speed <1.5m/min, min. slewing stable speed <0.15°/s. Electrical control saves energy by 15% during loading, raises heavy load efficiency by 30%.
