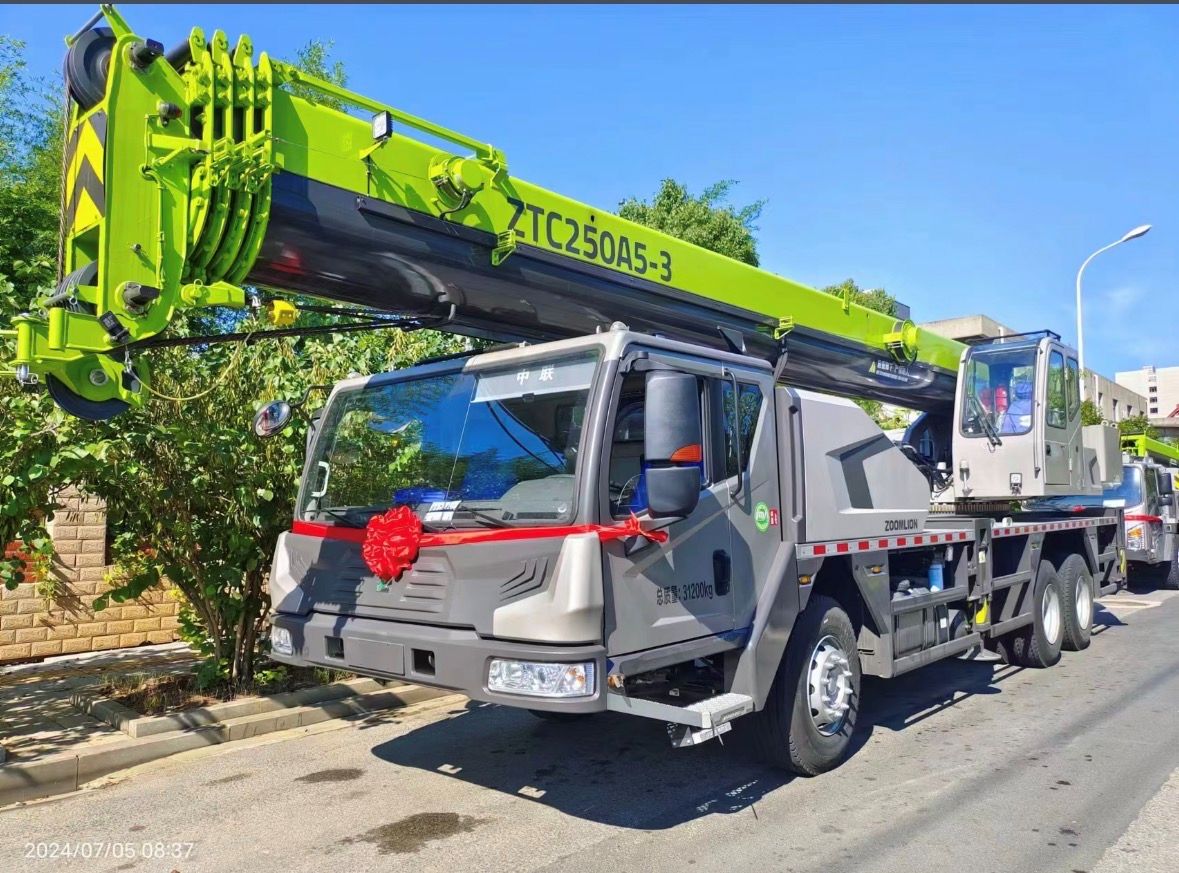

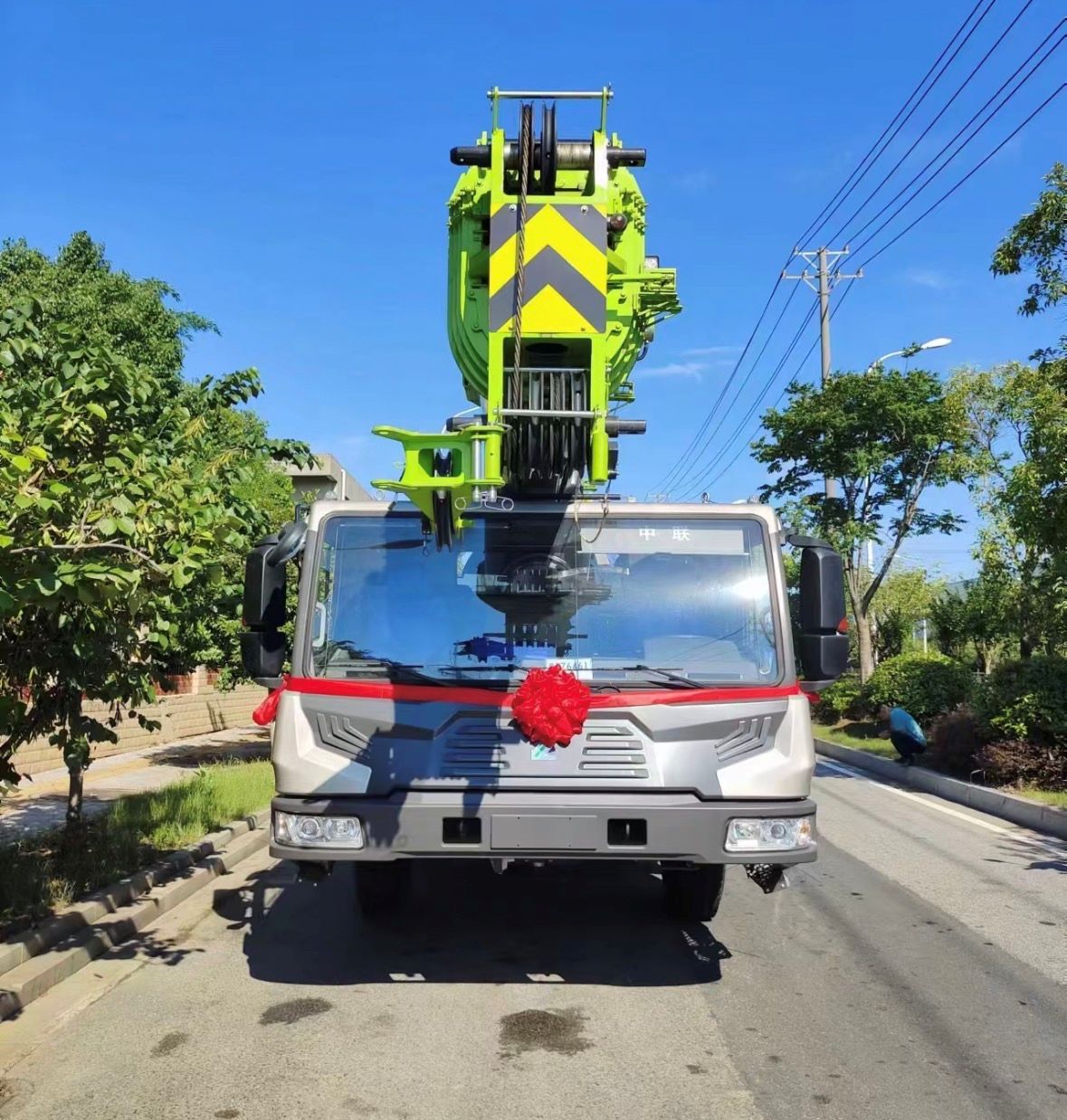

Zoomlion ZTC250A5 Truck Crane
Maximum rated gross lifting capacity (kg): 25000
Maximum lifting torque of basic boom (kN.m): 960
Maximum lifting torque of longest boom (kN.m): 672
Maximum lifting height of basic boom (m): 11.4

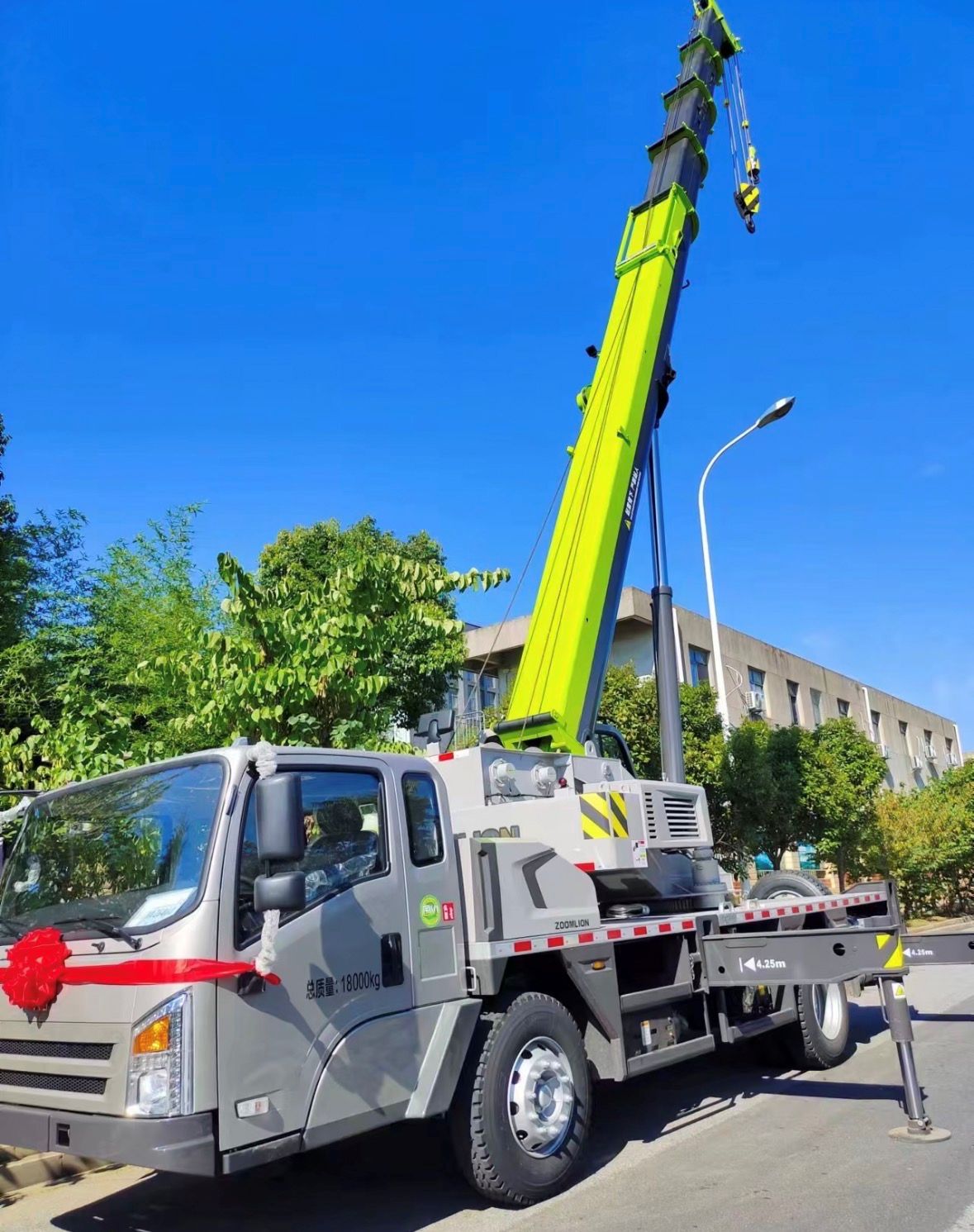

1. Four-section U-shaped main boom, up to 35 meters long. The maximum lifting moment of the basic boom is 960 kN·m, and the maximum lifting moment of the fully
extended boom is 672 kN·m. The maximum lifting capacity of the fully extended boom is 8 tons.

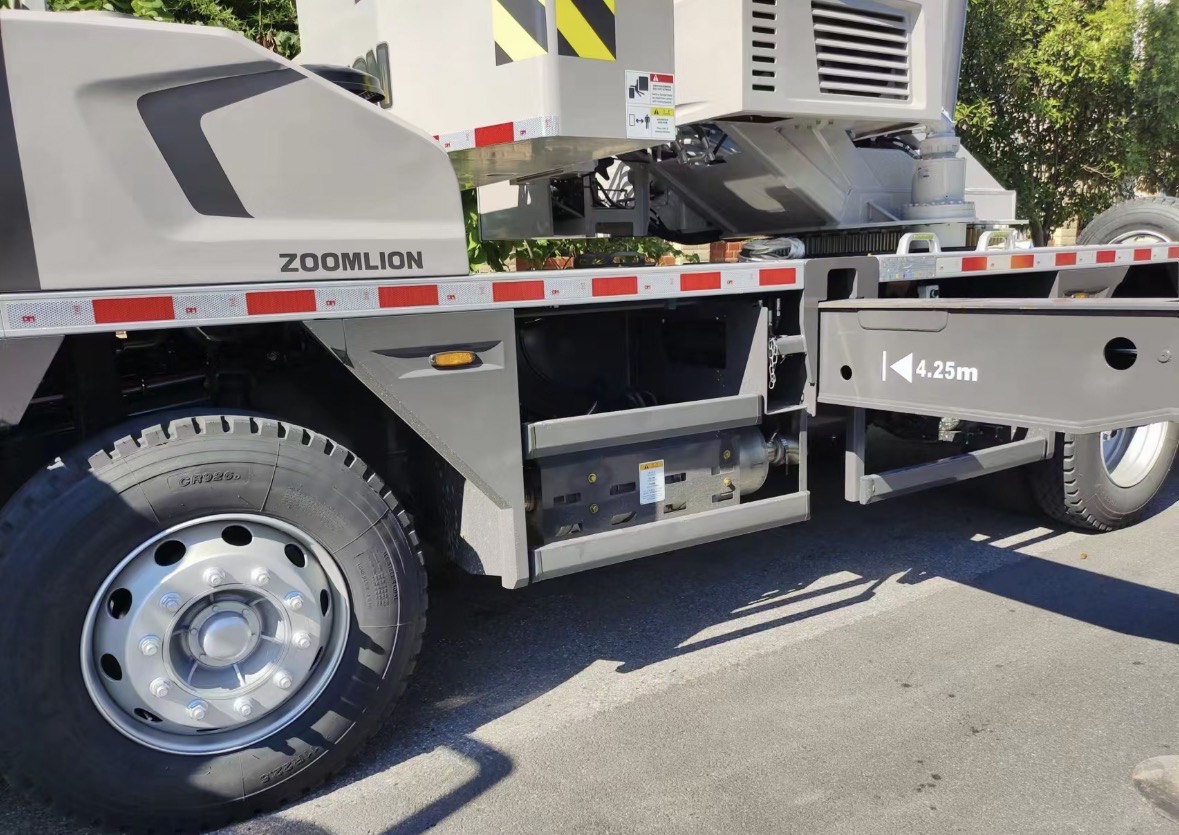

2. Three-axle heavy-duty truck crane chassis platform, offering strong load-bearing capacity, good passability and maneuverability, and reliable operation. The chassis
meets G-class vehicle standards and has no front underrun protection device.
3. Comprehensively upgraded control performance, featuring a slewing load-sensitive system and a high-displacement variable displacement motor for lifting, achieving
a perfect balance between working speed, smooth operation, and micro-motion.
4. Low operating costs. Utilizing a four-pump and variable displacement motor, fuel consumption is reduced by more than 10%. Employing a WP7 engine and a 9-speed
transmission, the optimized powertrain system further reduces fuel consumption by 10%.
5. A comprehensive onboard information platform enables three-dimensional monitoring of equipment operation.
6. A brand-new green, environmentally friendly, and stylish paint job, a brand-new two-room design, humanized details, and a panoramic wide-body control room for
a convenient and safe operating experience.
With its extended boom, the ZTC250A5 boasts unparalleled power! Equipped with a 5-section, 41-meter U-shaped main boom, it can lift up to 6.6 tons with the boom
fully extended, setting a new benchmark in its class. Its 10.25-meter minimum turning radius allows for agile maneuvering in confined spaces, flexibly handling complex
conditions such as bridges, steel structures, and urban construction. With a boom raising time of just 35 seconds and a slewing speed of 3 rpm, it not only handles
heavy loads but also delivers fast results!
True strength stems from inner composure. The ZTC250A5 cab features a 7-inch touchscreen with a multi-function steering wheel, putting everything at your fingertips.
The entire vehicle is equipped with intelligent leakage protection, coupled with an onboard frequency converter, ensuring safety for every operation. The aurora green
exterior reflects thoughtful human-centered design and guarantees efficient and stable construction. Drive the ZTC250A5 and be the most comfortable protagonist on
the construction site!
| Maximum rated gross lifting capacity (kg) | 25000 |
| Maximum lifting torque of basic boom (kN.m) | 960 |
| Maximum lifting torque of longest boom (kN.m) | 672 |
| Basic boom maximum lifting height m | 11.4 |
| Main boom maximum lifting height m | 35.4 |
| Jib maximum lifting height m | 43 |
| Single rope maximum speed (main hoist) m/min | 120 |
| Single rope maximum speed (auxiliary hoist) m/min | 120 |
| Boom lifting time s | 25 |
| Boom extension time s | 64 |
| Swing speed r/min | 0～3 |
| Maximum operating altitude m | 2000 |
| Maximum travel speed km/h | 85 |
| Maximum gradient % | 42 |
| Minimum turning diameter m | ≤20 |
| Minimum ground clearance mm | 260 |
| Fuel consumption for 100 km L | 28 |
| Travel state weight (total mass) kg | 29600 |
| Vehicle preparation weight kg | 29470 |
| Front axle load kg | 6300 |
| Rear axle load kg | 23300 |
| Overall dimensions (length×width×height) mm | 13100×2500×3450 |
| Slewing leg longitudinal distance m | 5.4 |
| Slewing leg transverse distance m | Full extension 6.2, half extension 4.25 |
| Tail swing radius mm | 3265 |
| Main boom length m | 10.7～35.0 |
| Main boom angle ° | -2～80 |
| Jib length m | 8 |
| Jib installation angle ° | 0, 15, 30 |
