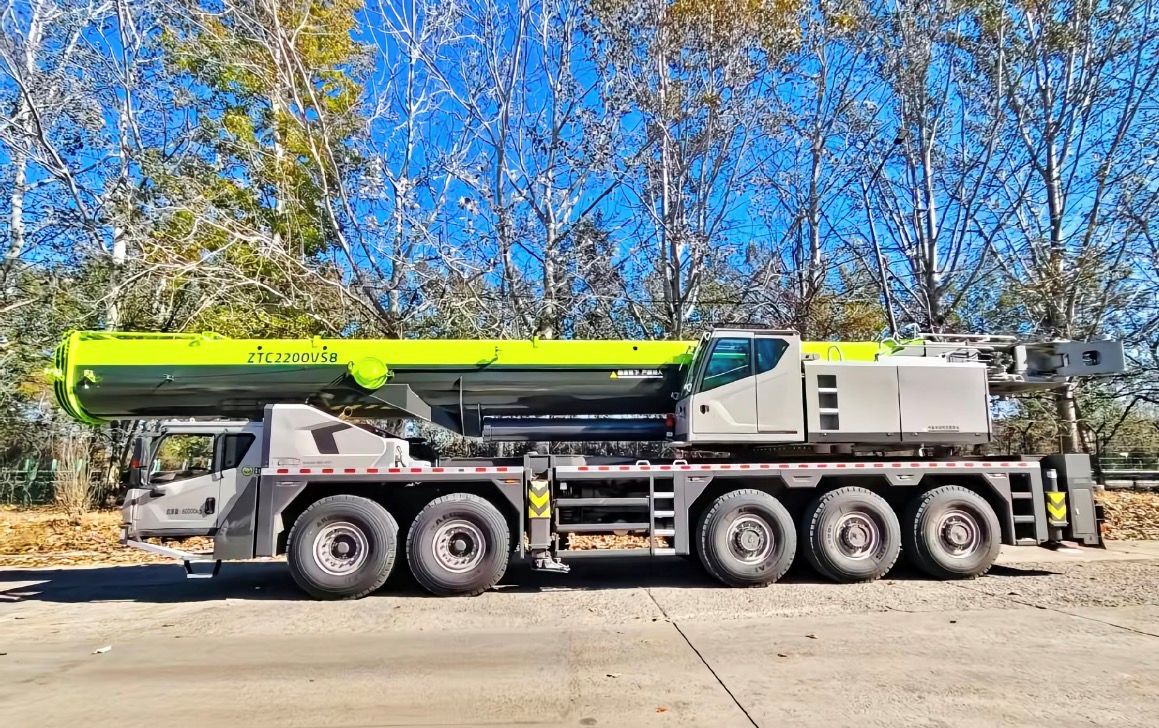

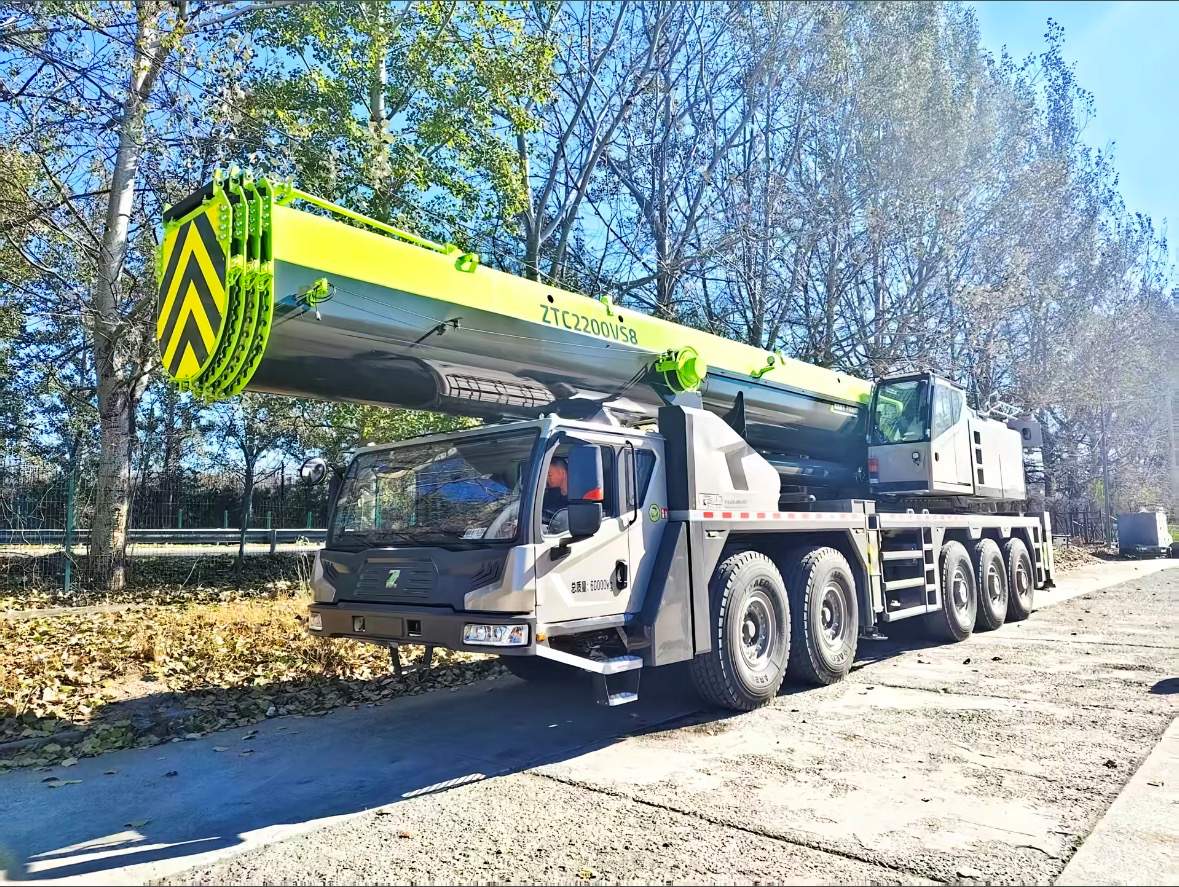

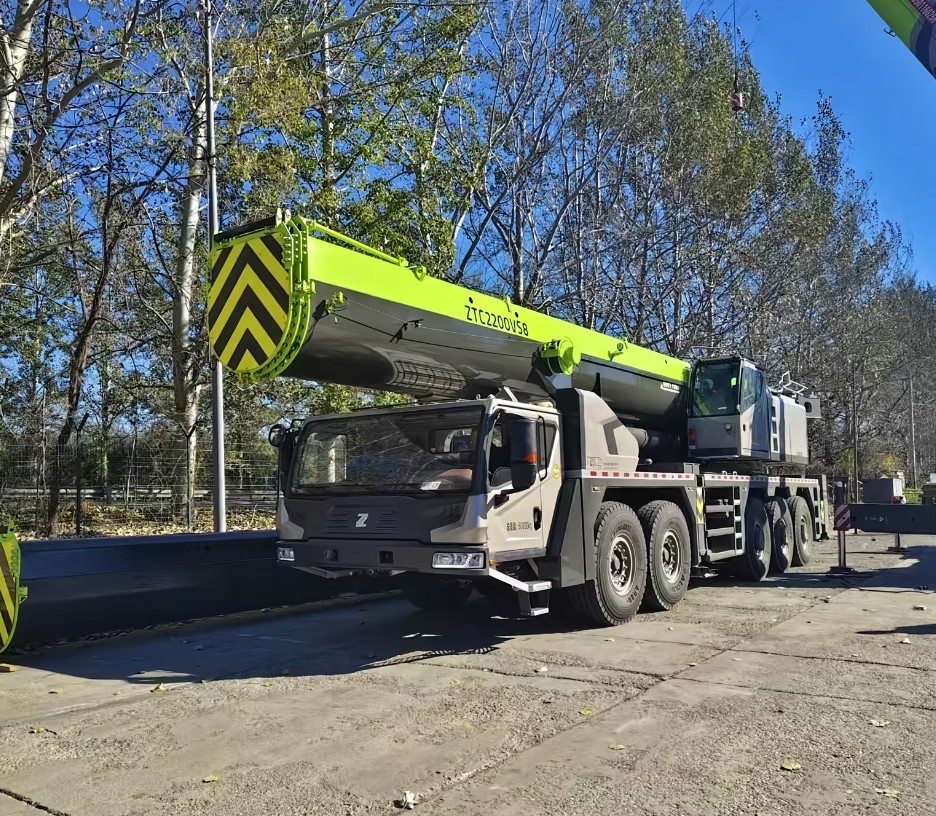

Zoomlion ZTC2200V Truck Crane
Maximum rated gross lifting capacity (kg): 110,000
Maximum lifting torque of basic boom (kN·m): 4704
Maximum lifting torque of extended boom (kN·m): 1865
Extended boom (m): 73
Superior Performance: Industry-leading 73m main boom + 33.5m auxiliary boom, maximum lifting height 102.5m;
Strongest Lifting Performance: Lifting performance of medium and long booms exceeds competitors by more than 10%, with a full-extension boom approaching the
industry average of 130-ton all-terrain lifting performance;
45t counterweight, exceeding competitors by 12.5%, offering optimal stability.
Dedicated Chassis: Powerful 460hp engine from a well-known domestic brand; 385/95R25 all-terrain tires, 380mm ground clearance, excellent off-road capability;
Hybrid suspension (oil-air + leaf spring) upgrades driving comfort and off-road performance.
Precise and Stable: Customized slow-speed function for precise lifting operations, minimum stable rotation speed of 0.1°/s, minimum stable lifting speed of 2m/min;
Dual-pump merging and splitting technology: Excellent maneuverability for complex movements, resulting in smoother operation and energy savings.
Superior Performance
Industry's longest main boom (73m) + jib (33.5m), maximum lifting height (102.5m);
Strongest Lifting Performance: Lifting performance of medium and long booms exceeds competitors by more than 10%, with a fully extended boom approaching the
industry average of 130-ton all-terrain lifting performance;
45t counterweight, exceeding competitors by 12.5%, offering optimal stability.
Dedicated Chassis
Powered by a domestically renowned brand 460hp engine; utilizes 385/95R25 all-terrain tires, 380mm ground clearance, ensuring excellent off-road capability;
Hybrid suspension (oil-air + leaf spring) upgrades driving comfort and off-road performance.
Precise and Stable
Customized slow-speed function for customized operation, minimum stable rotation speed of 0.1°/s, minimum stable lifting speed of 2m/min, meeting the requirements
for precise lifting operations;
Dual-pump merging and splitting technology: Excellent maneuverability for complex movements, resulting in greater stability and energy efficiency.
| Maximum rated gross lifting capacity (kg) | 110000 |
| Maximum lifting torque of basic boom (kN·m) | 4704 |
| Maximum lifting torque of extended boom (kN·m) | 1865 |
| Full extension arm m | 73 |
| Longest auxiliary arm m | 33.5 |
| Main hoisting single rope maximum speed m/min | 135 |
| Maximum travel speed km/h | 80 |
| Maximum gradient % | 45 |
| Traveling weight kg | 54900 |
| Overall dimensions (length x width x height) mm | 15490×3000×4000 |
| Slewing leg span (longitudinal x transverse) m | 8.05×7.8 |
| Rated power / speed kW/r/min | 338/1900 |
| Maximum torque / speed N·m/r/min | 2110/1400 |
