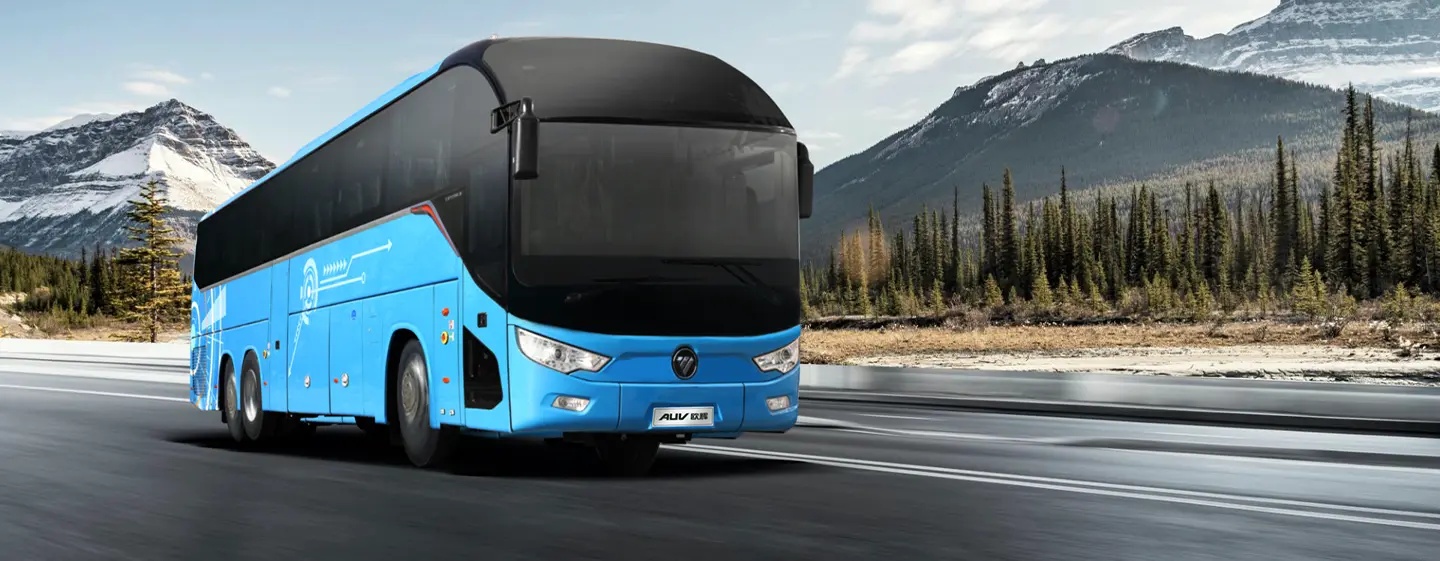

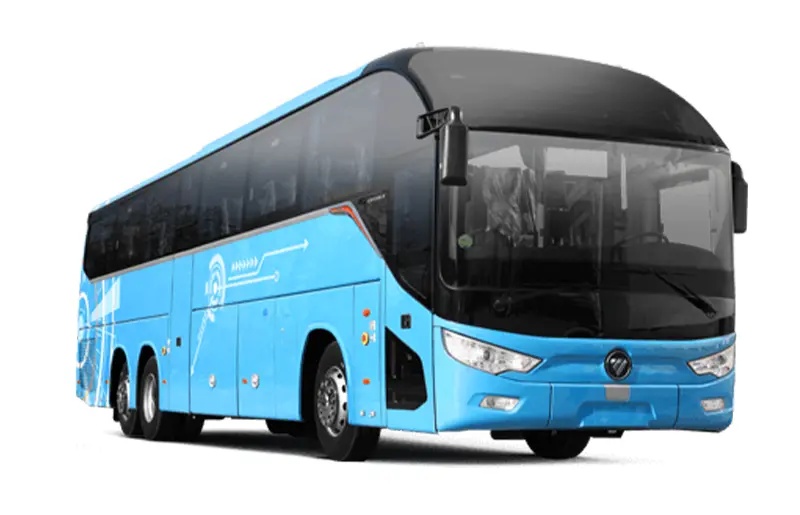

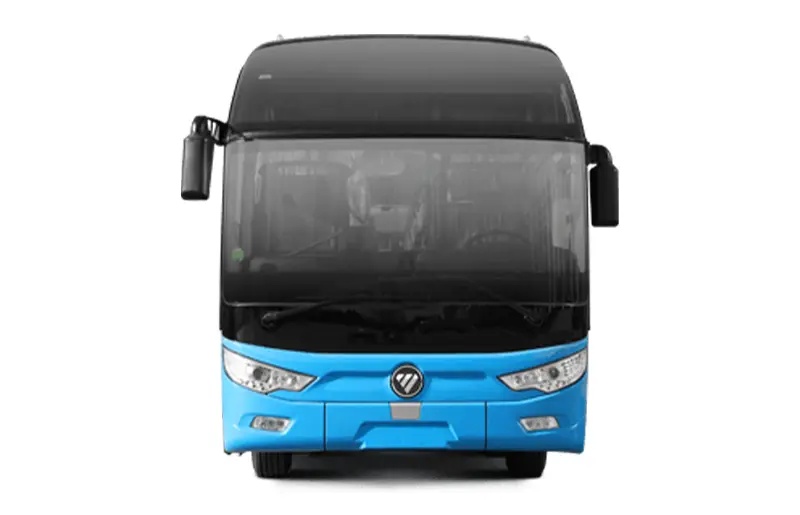

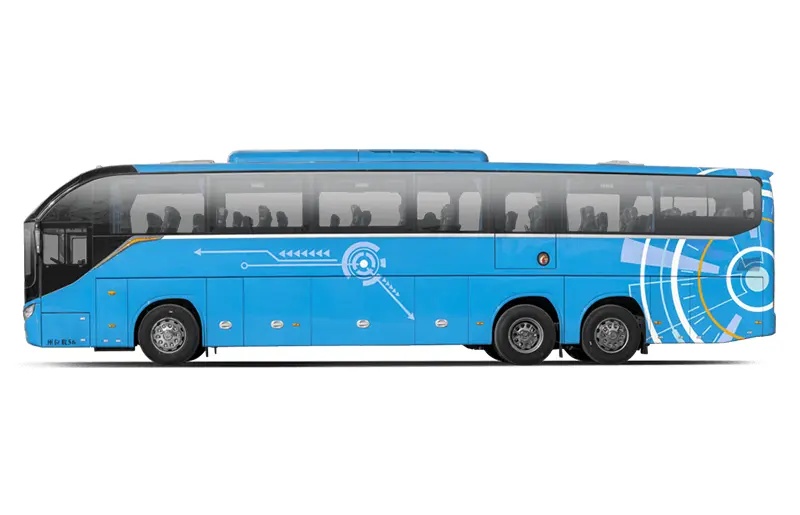

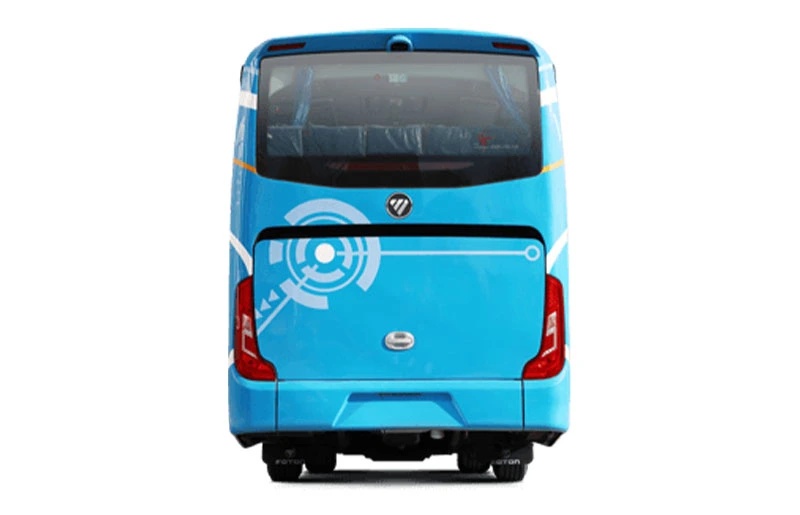

Foton Bus Blue
Brand: Brand: Foton Bus
Dimension：12000*2550*3860
Dimension：7995*2450*3380
Wheelbase(mm)：18000
Front Axle：domestic front axle
Rear axle：North-Benz 13T
Steering System：ZF8098 Power steering
Spiritual driving control, quality and enjoyment
By adopting a large-corner front axle and optimizing the synchronous tuning of the front and rear axles, the vehicle’s passing ability is significantly enhanced.
It boasts a high space utilization rate, with a seating capacity of 55+1.
A hydraulic retarder comes as standard equipment, ensuring efficient and reliable braking performance.
Equipped with a multi-functional adaptive driver’s seat, it provides the driver with a more comfortable driving experience.
The fully enclosed cockpit is paired with a short-handle instrument panel, making driving and operation more convenient.
Elegance on the inside, enjoying comfort
- The bilateral luxury luggage racks, finished in Rhine White, boast an attractive and stylish design. They not only elevate the vehicle’s appearance but also make it convenient for passengers to store their luggage.
- The ambient light clusters installed on the floor, ceiling dome, and dashboard create a strong sense of visual impact, enhancing the in-vehicle atmosphere.
- For an enhanced travel experience, a multi-color adjustable starry sky roof is available as an optional feature, allowing occupants to enjoy added comfort during journeys.
Full-time online intelligent navigation
The iFoton intelligent vehicle management system supports integration with multiple service functions—including navigation, multimedia entertainment, and vehicle safety management and monitoring. This integration fully enhances the bus’s comfort and practicality to the greatest extent. In addition, the vehicle is equipped with supplementary configurations such as in-car Wi-Fi, in-car Bluetooth, and USB charging ports for both front and rear seats. These features make it much more convenient for passengers to use various devices and services during their ride.
Economic safety and enjoyment of peace of mind
Active Safety Configuration: The vehicle is equipped with front and rear disc-brake axles, along with AEBS (Advanced Emergency Braking System), ESC (Electronic Stability Control), tire pressure monitoring, and a CAN bus. These features work together to provide all-round safety protection.
Aerodynamic & Structural Design: Adopting a tilting windshield and a full-bearing body, the vehicle effectively reduces driving resistance—this not only boosts driving speed but also cuts the overall fuel consumption by 5%.
Energy-Saving Equipment: A hydraulic retarder comes as standard, contributing to energy conservation and reduced fuel consumption.
Model | Foton Bus 56+1+1 |
Dimension (LxWxH)(mm) | 12000*2550*3860 |
G.V.W.(kg) | 18000 |
Seat No. | 56+1+1 |
Wheelbase(mm) | 6000 |
Min. Ground Clearance(mm) | 180 |
Max. Gradeability(%) | ≥30 |
Max. Speed (km/h) | ≥125 |
Fuel Tank Capacity(L) | 450 |
Fuel Consumption(L/100km) | ≤26 |
Engine Model | P11C-UJ、ISME360 30、WP10.336、WP10.375 |
Max Power/Rev. (KW (ps) /rpm) | 276（375）/2200 |
Gear Box | S6-160 |
Clutch | SACHS φ430 pull clutch |
Front Axle | domestic front axle |
Rear axle | North-Benz 13T |
Suspension System | Air suspension |
Steering System | ZF8098 Power steering |
Tyre | 295/80R22.5 |
Air Conditioner | Overhead non-independent air-conditioner (31000 kcal) |
Door and Door Pump | Remote control door lock |
Body Interior Trimming | Luxury profiled interior trimming |
Option | Digital clock, driving recorder,automatic fire extinguisher for engine compartment, stainless wheel cover |
About us
Futian Import and Export Co., Ltd. specializes in international trade, specializing in the import and export of a wide range of heavy-duty trucks. Leveraging a professional team and a robust supply chain, the company provides a one-stop service from product procurement to logistics and delivery for global customers. Adhering to the principles of "integrity, professionalism, efficiency, and win-win outcomes," the company is committed to achieving positive growth in international trade and contributing to the prosperity of global trade.

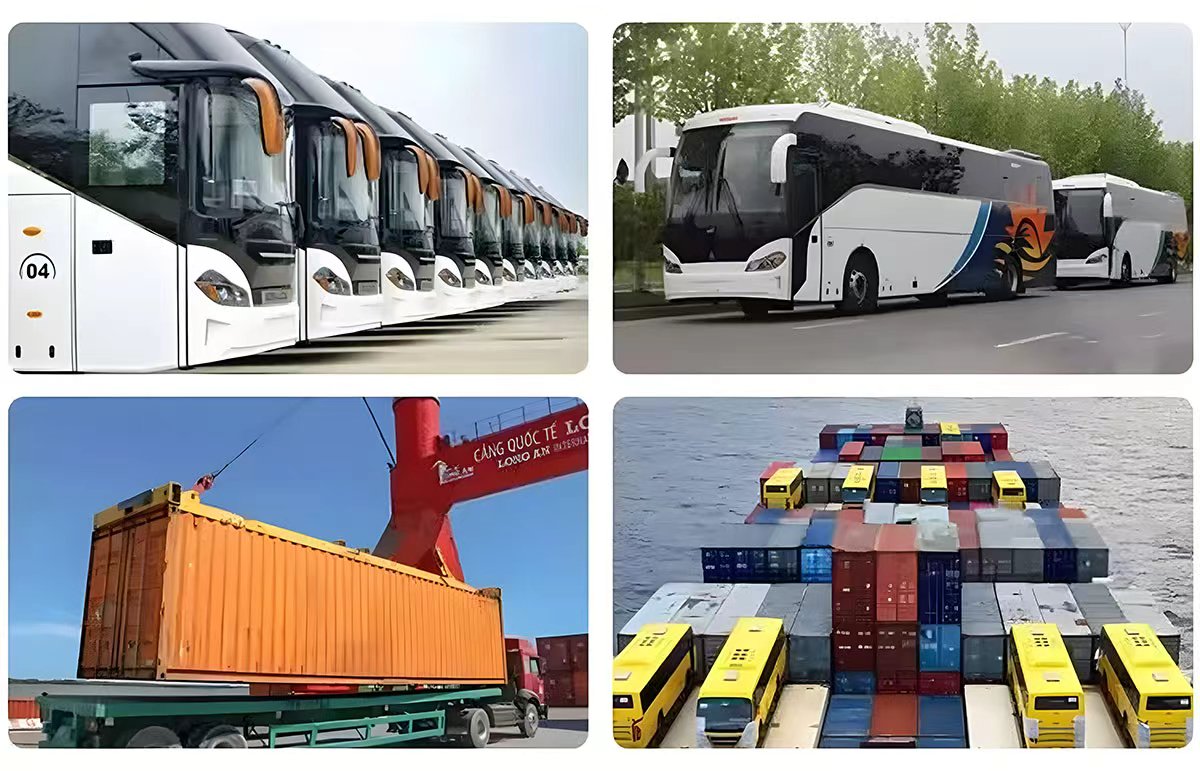

Delivery scene
From compliant customs declaration to customized anti-collision packaging, the entire chain is rigorously connected, ensuring that each batch of goods crosses the border safely and on time. With professional fulfillment capabilities, we help to make global trade efficient and smooth.
