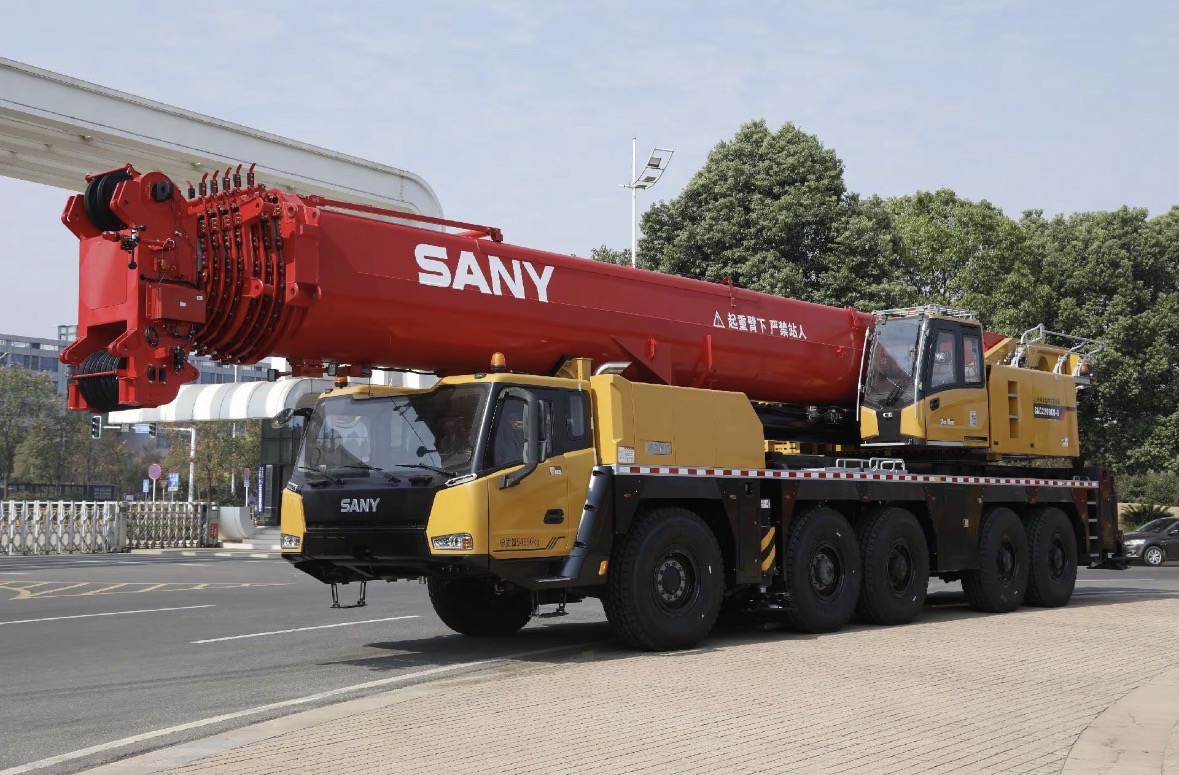

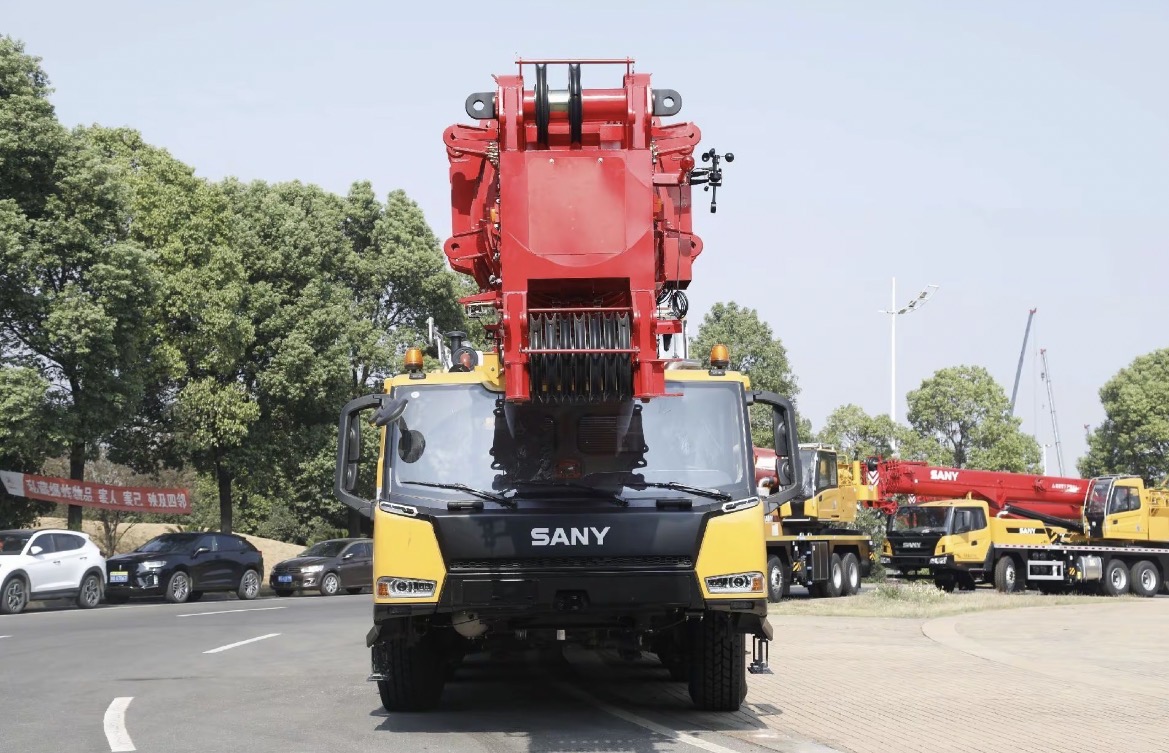

SANY STC2200C8 Truck Crane

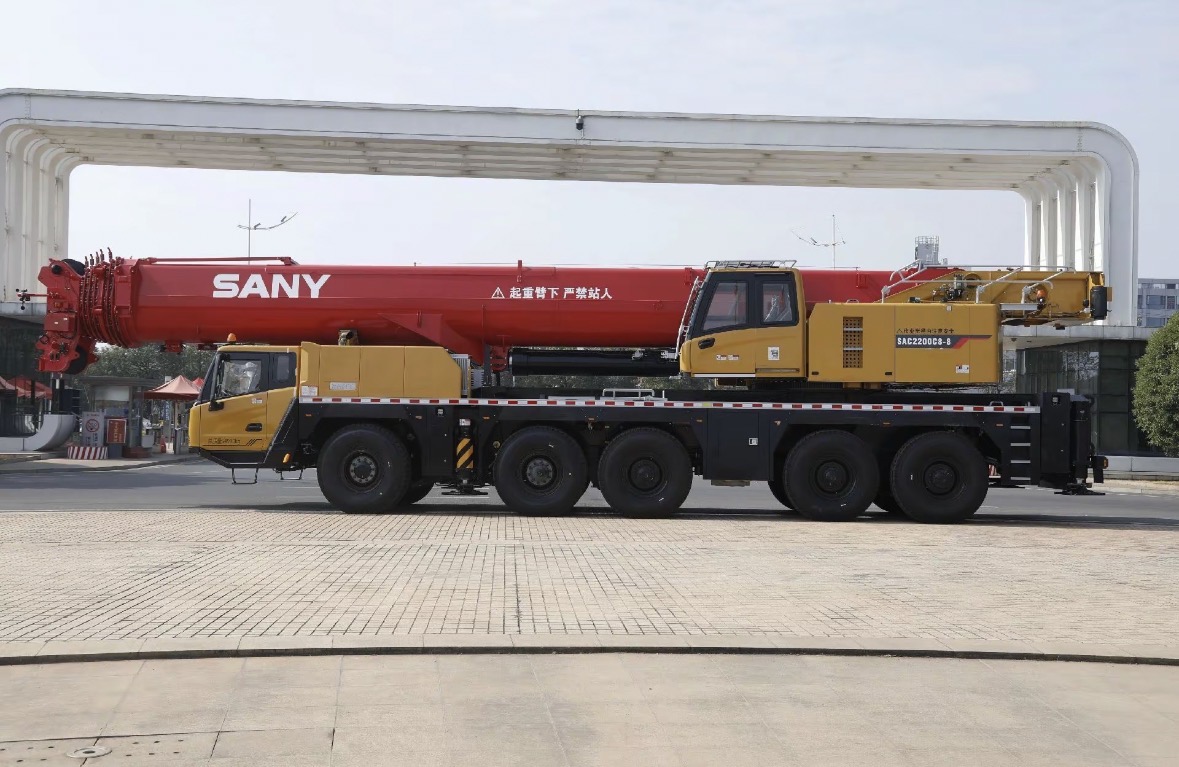

7-section 75.5m oval shaped boom and fixed jib 22m are standard, and the optional jib can be added up to 36m with two 7m inserts, delivering strong performance in lifting height, radius and weight. 70t full counterweight. 18t counterweight can be carried on board when traveling from jobsite to jobsite. Chassis BENZ OM460LA.E3A / ZF transmission / kessler axles (disc brake). 5-axle all-terrain carrier, H-type outriggers, hydro-pneumatic suspension, all-wheel steering, 6 steering modes, minimum steering radius of 10m. Independent hydraulic systems for crane and chassis (independent hydraulic system for crane operation consisting of variable piston pump + slewing pump + auxiliary pump + fluid tank), better maneuverability. Cable wiring for superstructure, IP67, easy maintenance with high reliability.

Parking brake: The parking brake acts on axles 2~5 by the energy-stored spring.   Service brake: All wheels adopt air servo brakes, forming a dual-circuit braking system. Disc brake is applied for all wheels.   Assist brake: Transmission hydraulic retarder brake, which can reduce the wear of brake system and save the use costs.

Modern data bus system, 24V DC power supply, and 2 battery packs with a single capacity of 180AH are provided, allowing for power cutoff of chassis. ▪ The chassis adopts CAN bus system, multi-functional centralized display system with low power consumption, and LCD screen with contrast adjustable.

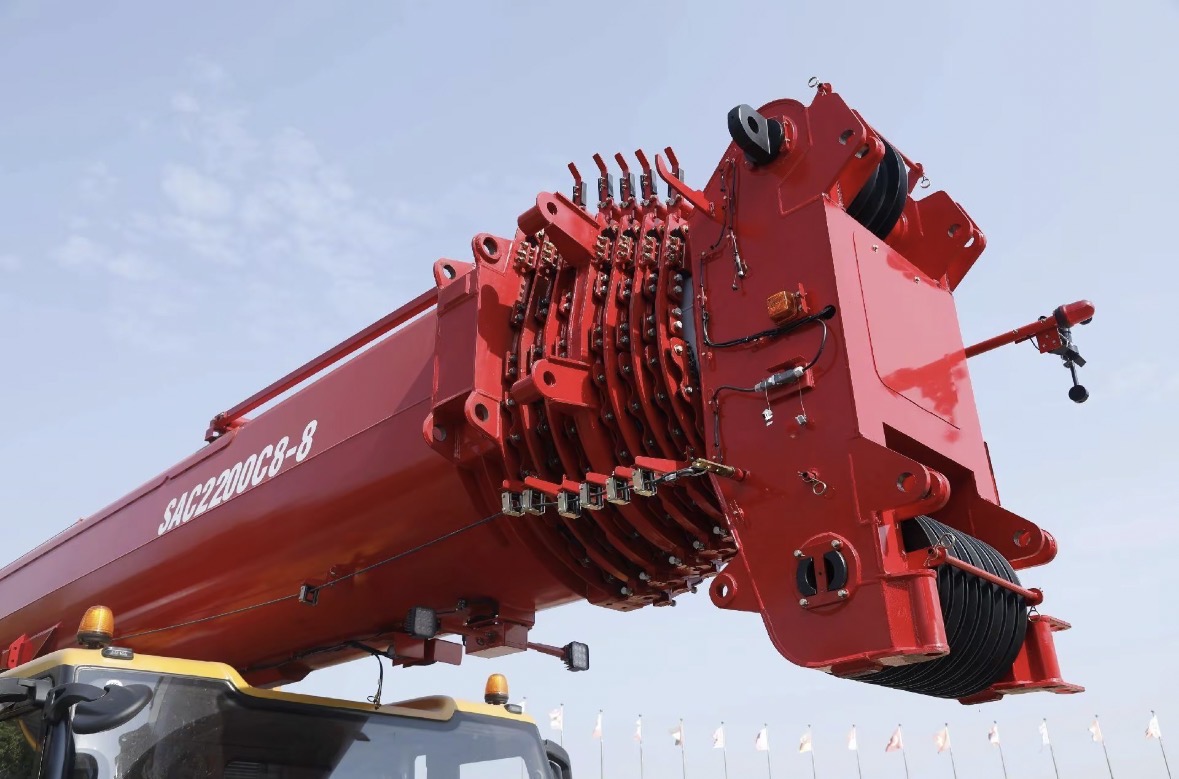

Boom: 7-section boom of oval shaped profile made of fine-grained high strength steel plate, with a full- extension length of 75.5m. ▪ Jib: 22m fixed jib is offered as standard, offsetable at 0°/20°/40°. Optional jib is up to 36m in total. ▪ Telescopic mechanism: The inter-independent hydraulic telescopic mechanism, more efficient, safe and reliable
