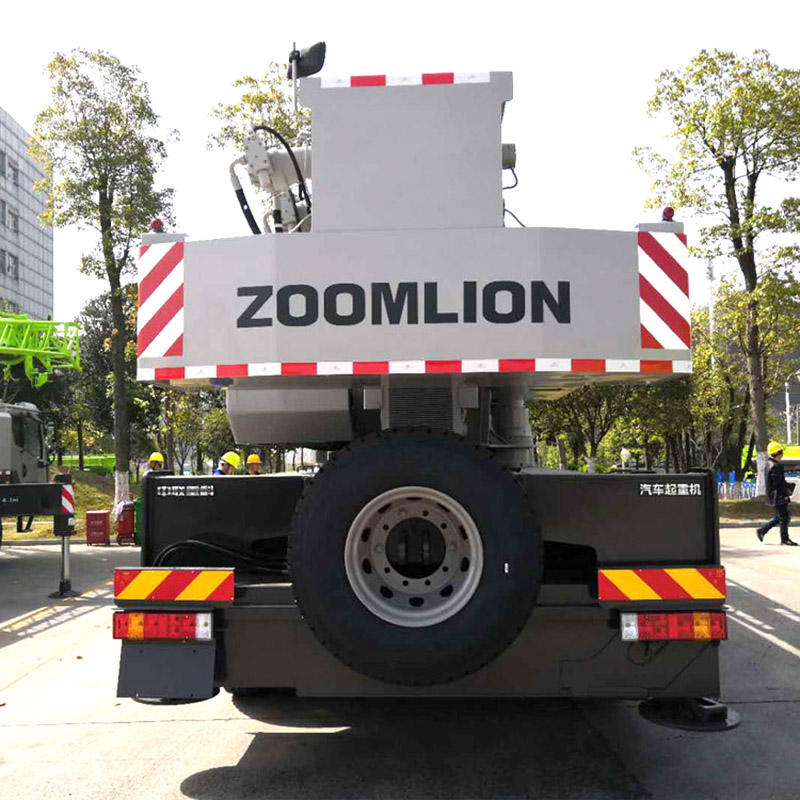

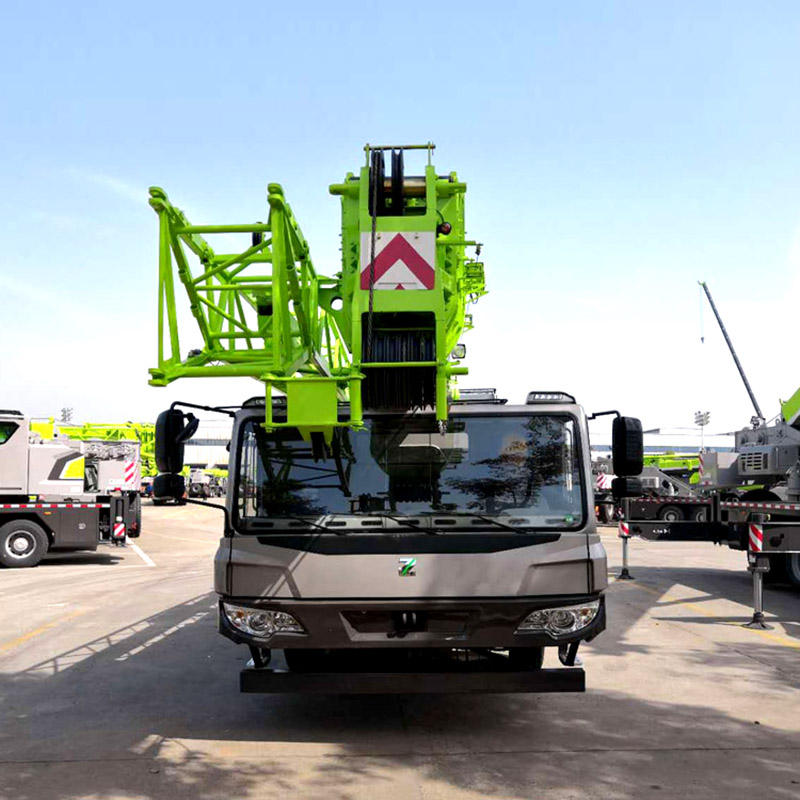

ZOOMLION ZAT1000 100 Ton Hydraulic Truck Crane
Industry-first, continuously leading – 110-ton truck crane, fully upgraded.
Available with 5-section or 7-section boom, the upgraded 110-ton truck crane delivers exceptional performance.
Its fully extended boom rivals that of industry 130-ton models.
1. Featuring an industry-innovative single-plate head and a 73m 7-section elliptical main boom, it delivers a maximum lifting height of 73.2m, with comprehensive lifting capacity 0%–20% higher than peers. The 45t counterweight exceeds competitors by 12.5%.2.The advanced electro-hydraulic proportional control system ensures industry-leading smoothness and precision for on-board operations (minimum stable slewing speed at 0.1°/s, minimum stable lifting speed at 2m/min), with superior plug-pin stability.
2. A classic industry powertrain delivers strong power via a 338kW engine. Large 385/95R25 tires and a minimum ground clearance of 380mm ensure excellent passability.
3. Reserved space for 10t base counterweight and two 17.5m lattice boom sections in travel state reduces operating costs.
4. Standard gooseneck frame shared with the jib connection bracket expands the operating range and boosts job change efficiency.
This truck crane features a high-performance engine paired with a precision-tuned transmission, guaranteeing consistent power delivery even under the most demanding heavy-load scenarios.
Its reengineered axle setup and advanced suspension system work in tandem to deliver superior driving stability and optimized load distribution across all operating conditions.
| Category | Item | Parameter |
| Lifting Performance Parameters | Maximum Rated Lifting Capacity (t) | 110 |
| Maximum Rated Lifting Moment (kN·m) | 4704 | |
| Maximum Lifting Moment with Fully Extended Boom (kN·m) | 1865 | |
| Number of Main Boom Sections | 7 | |
| Main Boom Length (m) | 73 | |
| Maximum Lifting Height of Main Boom (m) | 73.2 | |
| Number of Jib Sections | 4 | |
| Jib Length (m) | 17.5 + 8 + 8 (33.5) | |
| Maximum Lifting Height of Jib (m) | 102.5 | |
| Outrigger Span (L×W) (m) | 8.05 × 7.8 | |
| Counterweight (t) | 45 | |
| Travel Performance Parameters | Overall Dimensions (L×W×H) (mm) | 15490 × 3000 × 4000 |
| Total Weight in Driving Condition (t) | 54.9 | |
| Drive Steering Configuration | 10×6×6 | |
| Minimum Turning Diameter (m) | 23 | |
| Travel Speed (Km/h) | 80 | |
| Fuel Consumption per 100 km (L) | 65 | |
| Gradeability (%) | 45 | |
| Engine Model | WP12.460E50 | |
| Operational Performance Parameters | Engine Rated Power (kW/(r/min)) | 338/1900 |
| Slewing Speed ((r/min)) | 0 ~ 1.5 | |
| Main Boom Lifting Angle (°) | -0.5 ~ 82 | |
| Hoisting Time (s) | 65 | |
| Boom Extension Time (s) | 630 | |
| Single Rope Speed of Main Winch (5th layer) | 0 ~ 135 |
